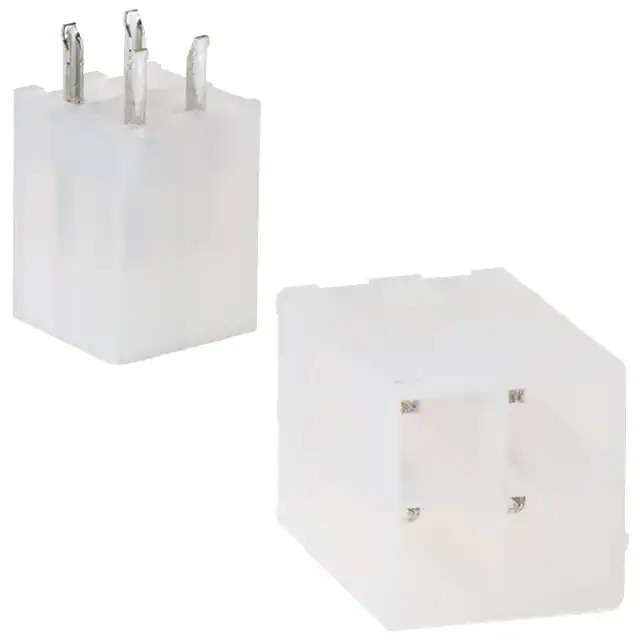

1586037-4 TE Connectivity
Same model may have multiple batches, images only for reference.

1586037-4

Part No 1586037-4
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 4POS 4.2MM / Connector Header Through Hole 4 position 0.165" (4.20mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series VAL-U-LOK
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.165" (4.20mm)
Number of Positions 4
Number of Rows 2
Row Spacing - Mating 0.165" (4.20mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Mating -
Contact Length - Post 0.138" (3.50mm)
Overall Contact Length -
Insulation Height 0.504" (12.80mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 80.0µin (2.03µm)
Contact Finish - Post Tin
Contact Material Brass Alloy
Insulation Material Polyamide (PA), Nylon
Features -
Temperature Range - Operating -40°C ~ 105°C
Ingress Protection -
Material Flammability Rating UL94 V-2
Insulation Color Natural
Current Rating (Amps) 9A
Voltage Rating 600VAC
Mated Stacking Heights -
Contact Finish Thickness - Post 80.0µin (2.03µm)
Applications General Purpose, Industrial, Lighting
Base Product Number 1586037
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1362614-1586037-4
Ultra Librarian 3D Model Ultra Librarian 1586037-4 CAD Model

Description

The 1362614-1586037-4 is a male pin header from TE Connectivity AMP Connectors' VAL-U-LOK series. It is designed for through-hole mounting type and is available in bulk packaging.

  • Manufacturer: TE Connectivity AMP Connectors
  • Series: VAL-U-LOK
  • Mounting Type: Through Hole
  • Pitch: 0.165" (4.20mm)
  • Connector Type: Board to Cable/Wire
  • Number of Positions: 4
  • Number of Rows: 2
  • Row Spacing: 0.165" (4.20mm)
  • Current Rating: 9A
  • Application: General Purpose, Industrial, Lighting
  • Design: Shrouded with 4 Walls
  • Pin Material: Brass Alloy
  • Pin Finish: Tin
  • Insulation Material: Polyamide (PA)
