1571563-9 TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series FSMJSMA
Package Tape & Reel
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 24VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 9.50mm
Actuator Length, Right Angle -
Actuator Orientation Top Actuated
Termination Style Gull Wing
Outline 6.00mm x 6.00mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Operating Force 160gf
Ingress Protection -
Features -
Temperature Range - Operating -35°C ~ 85°C
Actuator Material Polyphenylene Sulfide (PPS)
Switch Travel 0.25mm
Mechanical Life 100,000 Cycles
Base Product Number 1571563
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1376464-1571563-9
Ultra Librarian 3D Model Ultra Librarian 1571563-9 CAD Model

Description

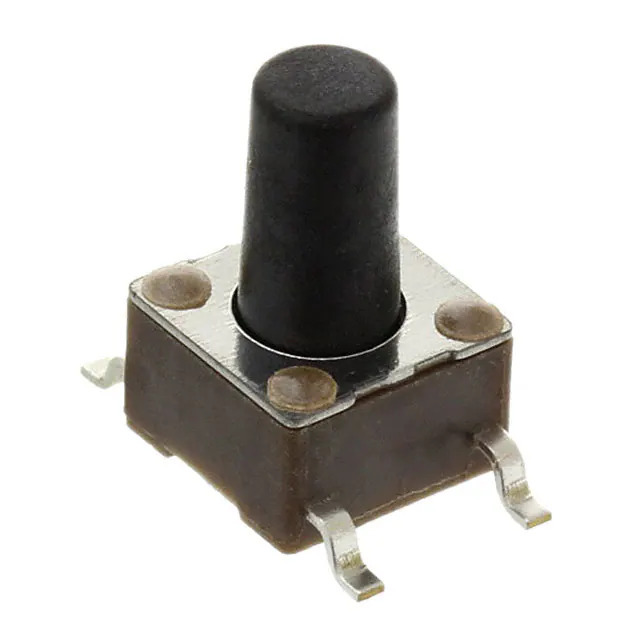

The 1376464-1571563-9 is a tactile switch from TE Connectivity ALCOSWITCH Switches. It belongs to the FSMJSMA series, which is known for its high-quality and reliable performance.

  • Temperature Range: -35°C to 85°C
  • Circuit Configuration: SPST-NO
  • Switch Function: off-mom
  • Actuator Type: Standard
  • Illumination Type: Non-Illuminated
  • Mechanical Life: 100,000 cycles
  • Contact Rating: 0.05A @ 24VDC
  • Actuator Material: polyphenylene sulfide (PPS)
  • Mounting Type: Surface Mount
