Same model may have multiple batches, images only for reference.

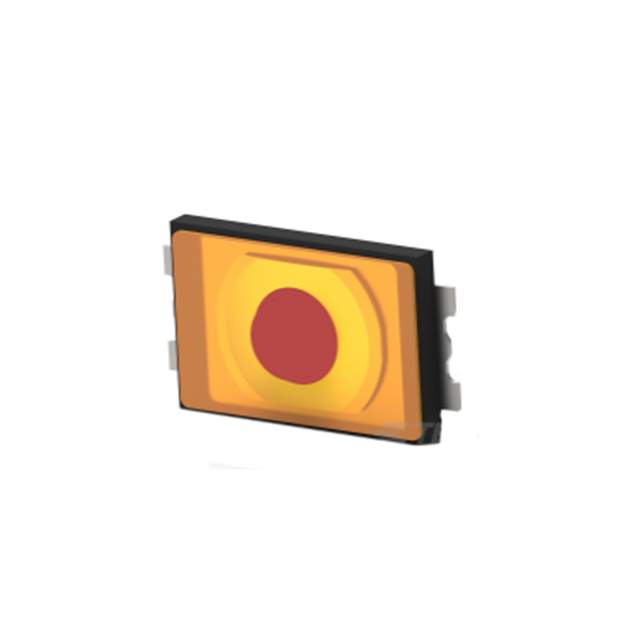

USLPT3020DT6TR Real Image
Same model may have multiple batches, images only for reference.

USLPT3020DT6TR

Part No USLPT3020DT6TR
Manufacturer TE Connectivity
Catalog Tactile Switches
Description TACT ULTRA TB 3.0X2.0X0.6 240GF  /  Tactile Switch SPST-NO Top Actuated Surface Mount
Datasheet
USLPT3020DT6TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Tactile Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series LPT
Package Tape & Reel
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.02A @ 15VDC
Actuator Type Standard
Mounting SMD (SMT)
Actuator Height off PCB, Vertical 0.60mm
Actuator Orientation Top Actuated
Termination Style SMD (SMT) Tab
Outline 3.00mm x 2.00mm
Illumination Non-Illuminated
Operating Force 240gf
Temperature Range - Operating -40°C ~ 85°C
Actuator Material Polyamide (PA), Nylon
Switch Travel 0.13mm
Mechanical Life 300,000 Cycles
Base Product Number USLPT
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8536.50.9031
Other Names 450-3368-1,450-3368-2,2337230-3,450-3368-6
Standard Package 2,500
Win Source Part Number 1086320-USLPT3020DT6TR
Ultra Librarian 3D Model Ultra Librarian USLPT3020DT6TR CAD Model

Description

The USLPT3020DT6TR is a tactile switch manufactured by TE Connectivity ALCOSWITCH Switches.

  • Series: LPT
  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Type: standard
  • Mounting: SMD (SMT) technology
  • Mechanical Life: 300,000 cycles
  • Illumination: non-illuminated
  • Operating Force: 240gf
  • Temperature Range: -40°C to 85°C
  • Alternative Part: yes
