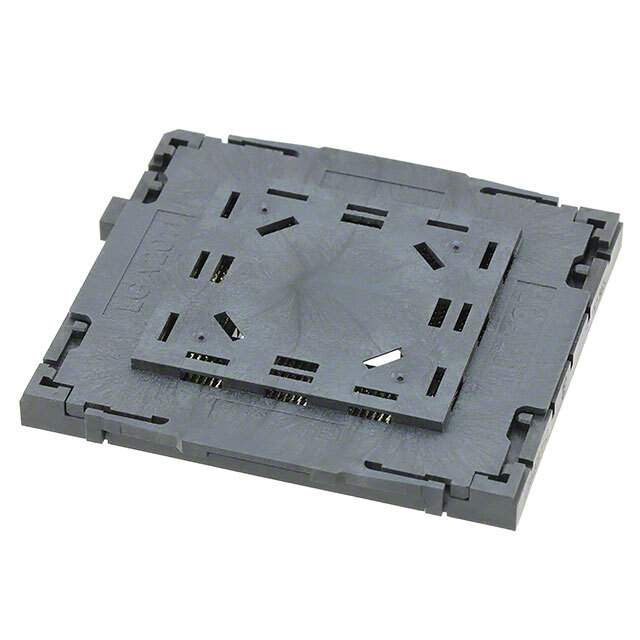

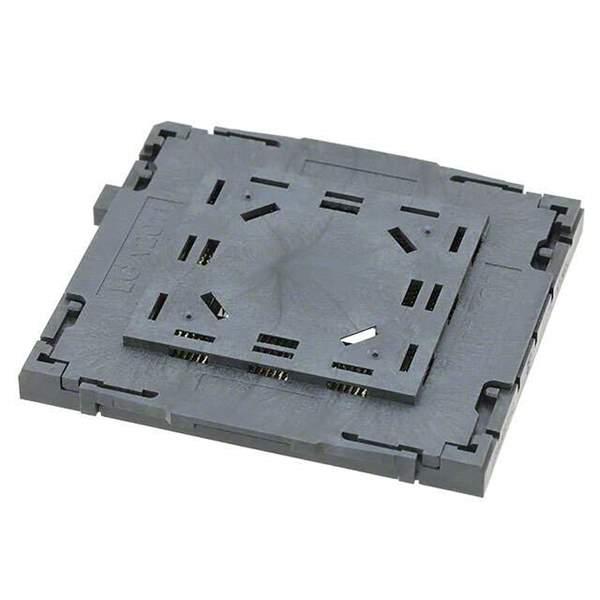

1554653-1 Real Image
Same model may have multiple batches, images only for reference.

1554653-1

Part No 1554653-1
Manufacturer TE Connectivity
Catalog Sockets for ICs, Transistors
Description CONN SOCKET LGA 2011POS GOLD  /  2011 (47 x 58) Pos LGA Socket Gold Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Sockets for ICs, Transistors
Mfr TE Connectivity AMP Connectors
Package Tray
Product Status Last Time Buy
Type LGA
Number of Positions or Pins (Grid) 2011 (47 x 58)
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Material - Mating Copper Alloy
Mounting SMD (SMT)
Features Open Frame
Termination Solder
Contact Finish - Post Gold
Contact Finish Thickness - Post 15.0µin (0.38µm)
Contact Material - Post Copper Alloy
Housing Material Thermoplastic
Temperature Range - Operating -25°C ~ 100°C
Material Flammability Rating UL94 V-0
Base Product Number 1554653
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names -1554653-1-SI,A107772,-1554653-1-CSI
Standard Package 10
Win Source Part Number 1205096-1554653-1
Ultra Librarian 3D Model Ultra Librarian 1554653-1 CAD Model

Description

The TE Connectivity AMP Connectors 1205096-1554653-1 is an LGA type socket for ICs and transistors.

  • Type: LGA
  • Standard Package: 10
  • Termination: Soldered
  • Housing Material: Thermoplastic
  • Material Flammability Rating: UL94 V-0
  • Positions or Pins (Grid): 2011 (47 x 58)
  • Contact Finish Thickness: 15.0µin (0.38µm)
  • Category: Connectors, interconnects>sockets for ICs, transistors
  • Status: Last-time buy
