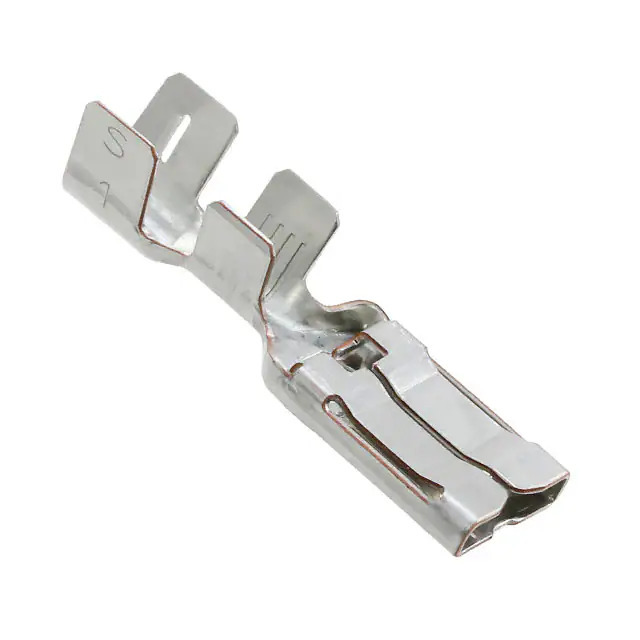

Same model may have multiple batches, images only for reference.

1544227-1

Name: 1544227-1
Brand: TE Connectivity
SKU: 1364775
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	1544227-1
Manufacturer	TE Connectivity
Catalog	Terminals
Description	CONN QC RCPT 10-12AWG 0.315 / 0.315" (8.00mm) Quick Connect Female 10-12 AWG Crimp Connector Non-Insulated
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr	TE Connectivity AMP Connectors
Series	PRONER
Package	Tape & Reel (TR)
Product Status	Active
Terminal Type	Standard
Gender	Female
Tab Width	0.315" (8.00mm)
Tab Thickness	0.039" (0.99mm)
Tab Length	0.433" (11.00mm)
Length - Overall	1.181" (30.00mm)
Termination	Crimp
Wire Gauge	10-12 AWG
Insulation	Non-Insulated
Mounting Type	Free Hanging (In-Line)
Features	-
Color	-
Contact Material	Copper Alloy
Contact Finish	Tin
Insulation Diameter	0.244" (6.20mm)
Base Product Number	1544227
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.90.4000
Win Source Part Number	1364775-1544227-1
Ultra Librarian 3D Model	Ultra Librarian 1544227-1 CAD Model

Description

The TE Connectivity AMP Connectors PRONER series Quick Disconnect Connectors are a reliable solution for various electrical applications.

Applications: Automotive, Industrial, and Consumer Electronics
Wire Gauge Range: 10-12 AWG
Contact Material: Copper Alloy
Contact Finish: Tin
Female Terminal Tab Width: 0.315" (8.00mm)
Female Terminal Tab Thickness: 0.039" (0.99mm)
Overall Length: 1.181" (30.00mm)
Insulation Diameter: 0.244" (6.20mm)
Insulation: Non-Insulated
Termination: Crimp
Packaging: Tape & Reel
