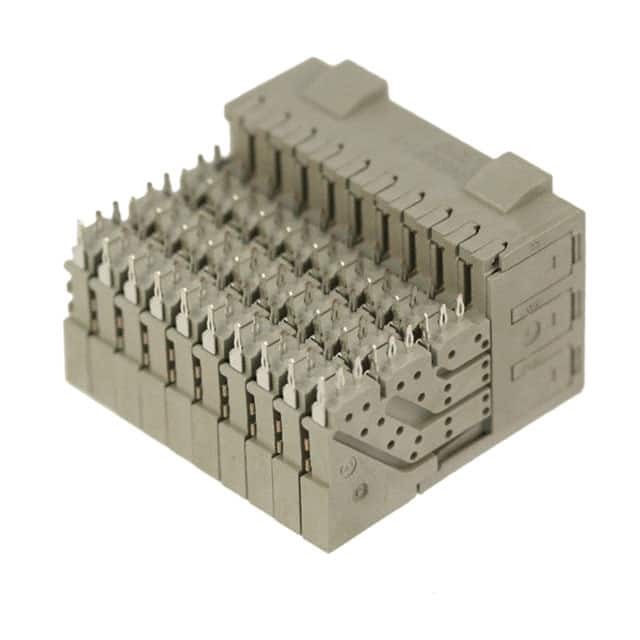

Same model may have multiple batches, images only for reference.
1469081-1
Same model may have multiple batches, images only for reference.

1469081-1

Part No 1469081-1
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description CONN RCPT HIGH SPEED 60P EDGE MT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - Specialized
Mfr TE Connectivity
Series Z-PACK HM-Zd
Package Tube
Product Status Active
Connector Usage Daughtercard
Connector Type Receptacle, Female Sockets
Connector Style High Speed
Number of Positions 60
Number of Positions Loaded All
Pitch 0.098" (2.50mm)
Number of Rows 6
Number of Columns 10
Mounting Type Board Edge, Through Hole, Right Angle
Termination Press-Fit
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Current Rating (Amps) 0.700A
Material Flammability Rating UL94 V-0
Temperature Range - Operating -65°C ~ 105°C
Voltage Rating 250V
Base Product Number 1469081
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 854001-1469081-1
Ultra Librarian 3D Model Ultra Librarian 1469081-1 CAD Model

Description

The 854001-1469081-1 is a specialized backplane connector from the Z-PACK HM-Zd series by TE Connectivity.

  • Type: Receptacle with female sockets
  • Positions: 60
  • Pitch: 0.098" (2.50mm)
  • Application: High-speed
  • Voltage Rating: 250V
  • Termination: Press-fit
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Usage: Daughtercard
  • Rows: 6
  • Columns: 10
  • Operating Temperature: -65°C to 105°C
  • Flammability Rating: UL94 V-0
  • Standard Package: 20 pcs
  • Status: Active
