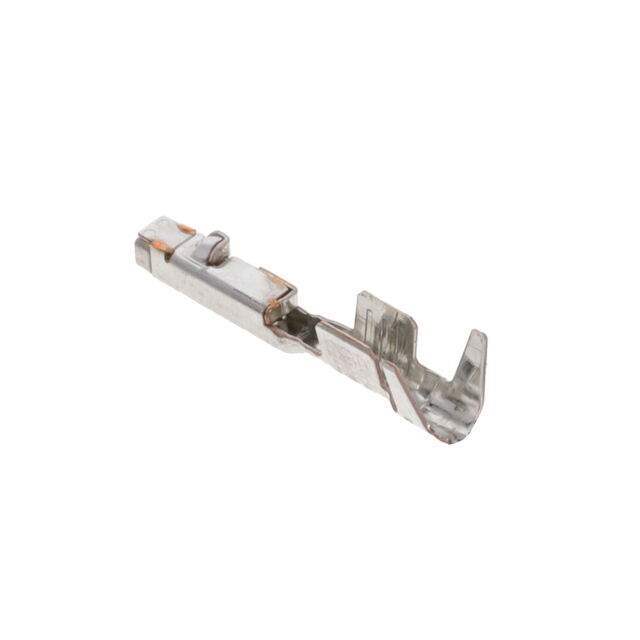

1452503-3 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

1452503-3

Part No 1452503-3
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN SOCKET 15-17AWG CRIMP SILVR
Datasheet
1452503-3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1309759-1452503-3
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects > Rectangular Connectors > Rectangular Connector Contacts
Part Status Active
Pin or Socket Socket
Contact Termination Crimp
Contact Finish Silver
Contact Finish Thickness 78.7µin (2.00µm)
Ultra Librarian 3D Model Ultra Librarian 1452503-3 CAD Model

Description

● Terminal Type: Receptacle<br />● Mating Tab Width: 1.2 mm [ .047 in ] ● Mating Tab Thickness: .6 mm [ .024 in ]● Terminal Transmits: 0 – 24 A (Low Power)● Wire Size: 17 – 15 AWG
