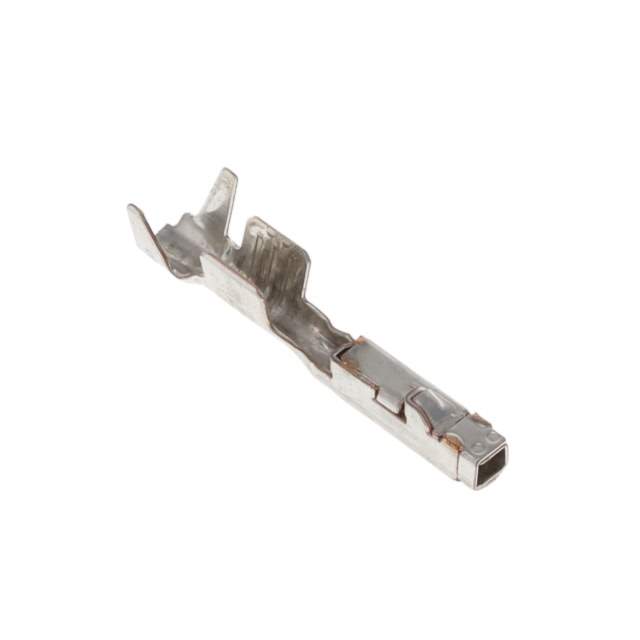

1452503-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Rectangular Connector Contacts
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 15-17 AWG
Contact Finish Tin
Contact Finish Thickness 39.4µin (1.00µm)
Base Product Number 1452503
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number -1452503-1-CSI,17-1452503-1TR,-1452503-1-SI,17-1452503-1CT,-1452503-1-LSI,1452503-1-ND
Standard Package 8,000
Win Source Part Number 1333710-1452503-1
Ultra Librarian 3D Model Ultra Librarian 1452503-1 CAD Model

Description

The 1452503-1 is a rectangular connector contact that falls under the category of Rectangular Connector Contacts. The manufacturer of this contact is TE Connectivity AMP Connectors.

  • Package Type: Reel - TR
  • Standard Package: 8,000
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • Contact Type: Socket
  • Wire Gauge: 15-17 AWG
  • Contact Finish: tin
  • Termination Type: crimp
  • Contact Finish Thickness: 39.4μin (1.00μm)
  • Ideal for applications: automotive, aerospace, and defense
