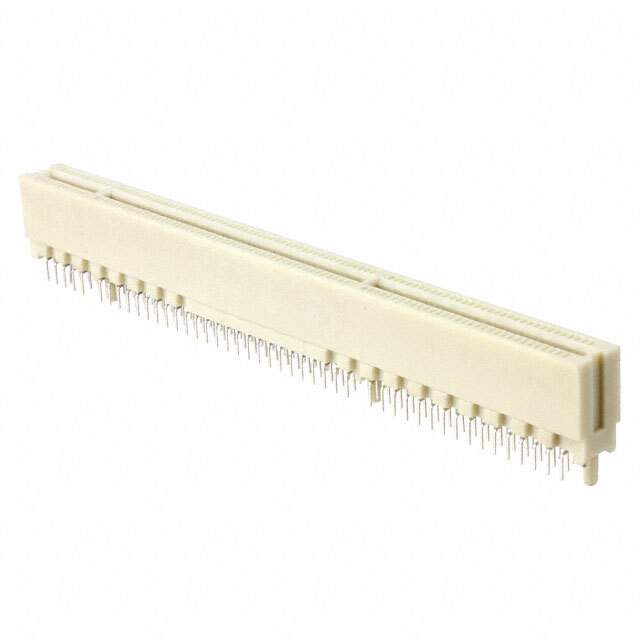

145165-8 Real Image
Same model may have multiple batches, images only for reference.

145165-8

Part No 145165-8
Manufacturer TE Connectivity
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN PCI CARDEDGE FML 184P 0.050 / 184 Position Female Connector PCI 3.3V 64 Bit Gold 0.050" (1.27mm) Natural
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors>Edgeboard Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Card Type PCI 3.3V 64 Bit
Gender Female
Number of Positions/Bay/Row 11; 49; 32
Number of Positions 184
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.050" (1.27mm)
Read Out Dual
Features Board Guide
Mounting Through Hole
Termination Solder, Staggered
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Color Natural
Material - Insulation Thermoplastic
Base Product Number 145165
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 2266-145165-8,-145165-8-SI,A118736
Standard Package 35
Win Source Part Number 1334001-145165-8
Ultra Librarian 3D Model Ultra Librarian 145165-8 CAD Model

Description

The TE Connectivity AMP Connectors 1334001-145165-8 is a board guide female connector.

  • Packaging: Bulk
  • Positions: 184
  • Pitch: 0.050" (1.27mm)
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Contact Material: Phosphor Bronze
  • Insulation Material: Thermoplastic
  • Rows: Two
  • Termination: Staggered Solder
  • Card Type: PCI 3.3V 64 Bit
  • Positions/Bay/Row: 11, 49, 32
  • Card Thickness: 0.062" (1.57mm)
  • Readout: Dual
  • Mounting: Through-Hole
  • ECCN: EAR99
  • RoHS: Non-Compliant
