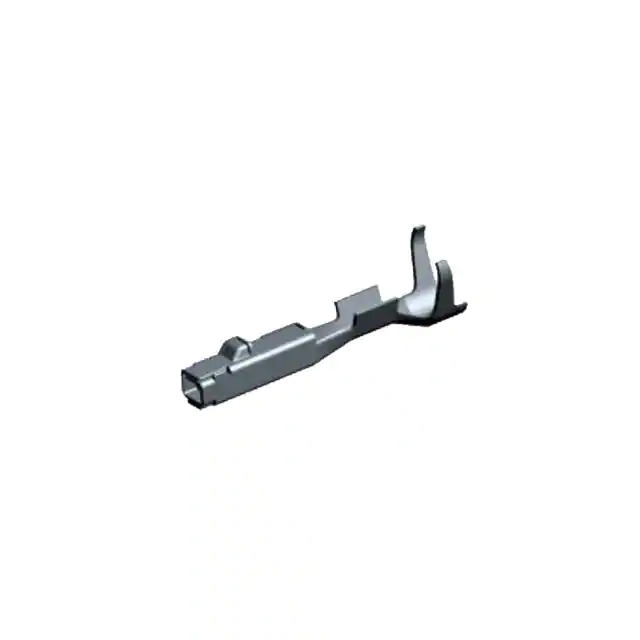

1418850-3 TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Contacts
Mfr TE Connectivity AMP Connectors
Series MCON
Package Tape & Reel (TR)
Product Status Active
Type -
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 15-17 AWG
Contact Finish Silver
Contact Finish Thickness 78.7µin (2.00µm)
Base Product Number 1418850
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1363377-1418850-3
Ultra Librarian 3D Model Ultra Librarian 1418850-3 CAD Model

Description

The 1363377-1418850-3 is a rectangular connector contact from TE Connectivity AMP Connectors.

  • Series: MCON
  • Packaging: Tape and Reel (TR)
  • Contact Termination: Socket Pin / Socket Crimp
  • Wire Gauge: 15-17 AWG
  • Contact Finish: Silver
  • Contact Finish Thickness: 78.7μin (2.00μm)
  • Product Status: Active
  • Base Product Number: 1418850
  • HTSUS: 8536.90.4000
  • ECCN: EAR99
