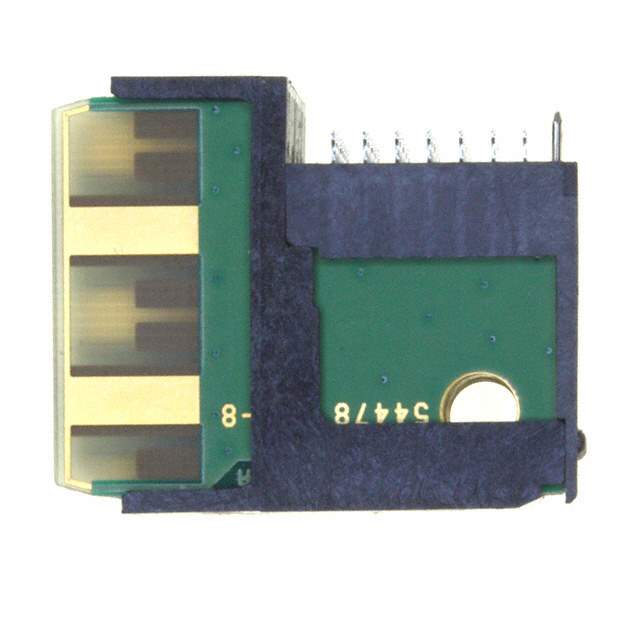

1410971-3 Real Image
Same model may have multiple batches, images only for reference.

1410971-3

Part No 1410971-3
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description CONN PLUG VITA46 56POS EDGE MNT / 56 Connector Plug, Male Blades Board Edge, Through Hole, Right Angle Black VITA 46, Half, Left End
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors - Specialized
Mfr TE Connectivity AMP Connectors
Series MultiGig RT2
Package Tube
Connector Usage Daughtercard
Connector Type Plug, Male Blades
Connector Style VITA 46, Half, Left End
Number of Positions 56
Number of Positions Loaded All
Pitch 0.071" (1.80mm)
Number of Rows 7
Number of Columns 8
Mounting Type Board Edge, Through Hole, Right Angle
Termination Press-Fit
Contact Layout, Typical 16 Signal Pairs, 4 Single Signal, 20 Ground
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 50.0µin (1.27µm)
Color Black
Material Flammability Rating UL94 V-0
Temperature Range - Operating -55°C ~ 105°C
Voltage Rating 50V
Base Product Number 1410971
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names -1410971-3-SI,14109713,A99149
Standard Package 30
Win Source Part Number 1018059-1410971-3
Ultra Librarian 3D Model Ultra Librarian 1410971-3 CAD Model

Description

The TE Connectivity AMP Connectors 1018059-1410971-3 is a VITA 46, half, left-end plug male blade connector suitable for daughtercard applications.

  • Positions: 56
  • Pitch: 0.071 inches
  • Loaded: all positions
  • Feature: board guide
  • Termination: press-fit
  • Contact Finish: gold
  • Contact Finish Thickness: 50.0µin
  • Color: black
  • Material Flammability Rating: UL94 V-0
