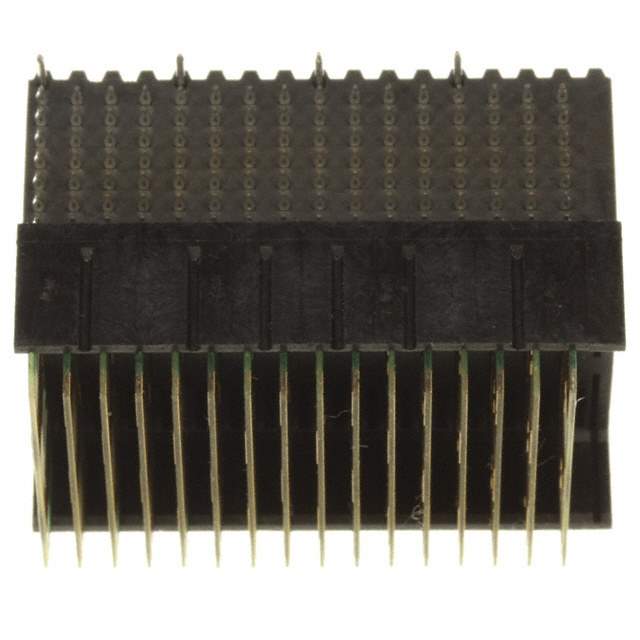

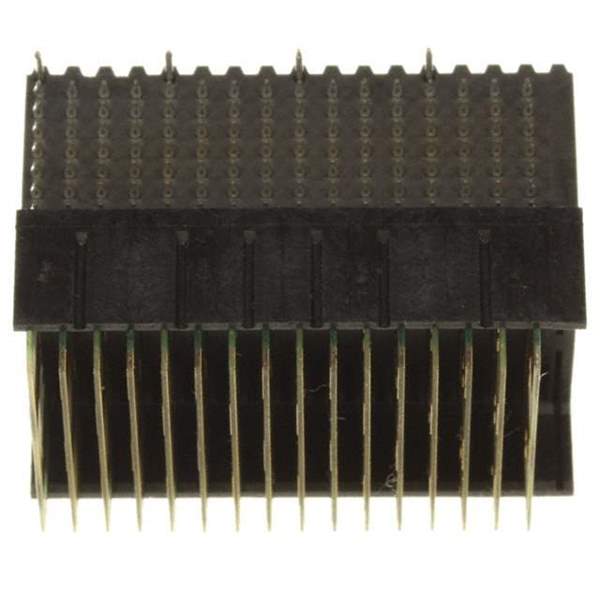

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors - Specialized
Mfr TE Connectivity AMP Connectors
Series MultiGig RT2
Package Tube
Connector Usage Daughtercard
Connector Type Plug, Male Blades
Connector Style MULTIGIG, Full, Right End
Number of Positions 112
Number of Positions Loaded All
Pitch 0.071" (1.80mm)
Number of Rows 7
Number of Columns 16
Mounting Type Board Edge, Through Hole, Right Angle
Termination Solder
Contact Layout, Typical 32 Signal Pairs, 8 Single Signal, 40 Ground
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 50.0µin (1.27µm)
Color Black
Material Flammability Rating UL94 V-0
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 1410188
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 14101883,-1410188-3-SI,A99145
Standard Package 16
Win Source Part Number 1022463-1410188-3
Ultra Librarian 3D Model Ultra Librarian 1410188-3 CAD Model

Description

The TE Connectivity AMP Connectors 1410188 is a 112-position backplane connector that belongs to the MultiGig RT2 series.

  • Positions: 112
  • Pitch: 0.071 inches (1.80mm)
  • Color: black
  • Features: board guide, plug, male blades
  • Termination: solder
  • Contact Finish: gold
  • Contact Finish Thickness: 50.0μin (1.27μm)
  • Voltage: 250VAC
  • Material Flammability Rating: UL94 V-0
  • Connector Usage: daughtercard
  • Columns: 16
  • Rows: 7
  • Contact Layout: 32 signal pairs, 8 single signal, and 40 ground
  • Temperature Range: -55°C to 105°C
  • Win Source Part Number: 1022463-1410188-3
