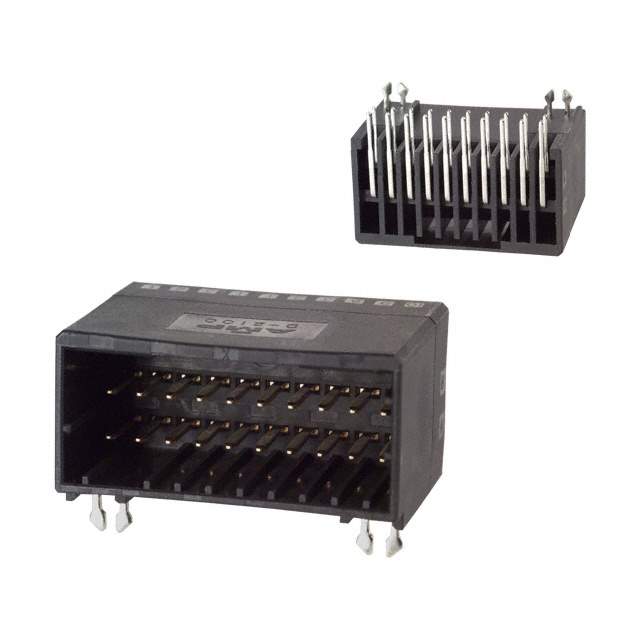

1376137-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series Dynamic D-2100
Package Bulk
Connector Type Header
Contact Type Tab
Pitch - Mating 0.098" (2.50mm)
Number of Positions 20
Number of Rows 2
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Length - Post 0.134" (3.40mm)
Insulation Height 0.579" (14.70mm)
Contact Shape Rectangular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic, Polyester, Glass Filled
Features Board Lock
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 5A
Voltage Rating 250VAC
Applications General Purpose, Industrial
Base Product Number 1376137
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names A29858,-1376137-1-CSI,-1376137-1-SI,2266-1376137-1
Standard Package 17
Win Source Part Number 1002655-1376137-1
Ultra Librarian 3D Model Ultra Librarian 1376137-1 CAD Model

Description

The Dynamic D-2100 series header connector is a high-quality, copper alloy contact type connector with 20 positions loaded on 2 rows.

  • Connector Type: tab
  • Positions: 20
  • Number of Rows: 2
  • Contact Material: Copper Alloy
  • Termination Style: Solder
  • Fastening Type: Detent Lock
  • Package: Bulk
  • Voltage Rating: 250VAC
  • Insulation Material: Thermoplastic, Polyester, Glass-Filled
  • Contact Finish-Mating: Gold
  • Contact Finish Thickness-Mating: 15.0μin (0.38μm)
  • Contact Finish-Post: Tin
  • Insulation Color: Black
  • Mounting Type: Through-Hole, Right Angle
  • Shrouding: Shrouded-4 Wall
  • Contact Length-Post: 0.134" (3.40mm)
  • Insulation Height: 0.579" (14.70mm)
  • Contact Shape: Rectangular
  • Operating Temperature: -55°C ~ 105°C
