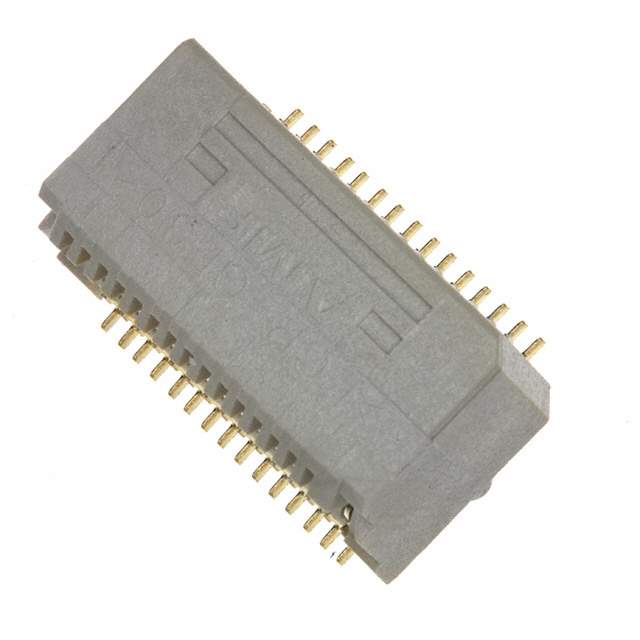

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 3 Weeks
Features 30 Position XFP Receptacle Connector Solder Surface Mount, Right Angle
Manufacturer TE Connectivity
Package Reel - TR
Mounting Surface Mount, Right Angle
Family Name 1367500
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number A97465DKR, A97465TR, 13675001, 2266-1367500-1TR, A97465CT, -1367500-1-SI
Quantity per package 480
Popularity High
Supply and Demand Status Balance
Win Source Part Number 905283-1367500-1
Ultra Librarian 3D Model Ultra Librarian 1367500-1 CAD Model

Description

The TE Connectivity 905283-1367500-1 is a 30 position XFP receptacle connector solder surface mount, right angle.

  • Positions: 30
  • Series: XFP
  • Mounting: Solder Surface Mount, Right Angle
  • Family Name: 1367500
  • Supply and Demand Status: Balanced
  • Estimated Production Lead Time: 3 weeks
  • Quantity per Package: 480
  • MSL Level: 1 (unlimited)
  • REACH Status: Vendor undefined
  • HTSUS: 8536.69.4040
  • Other Part Numbers: A97465DKR, A97465TR, 13675001, 2266-1367500-1TR, A97465CT, and -1367500-1-SI
