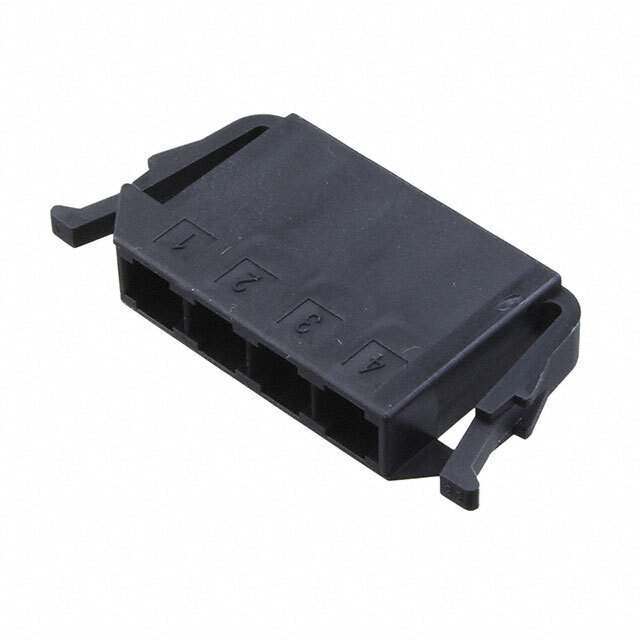

1355044-1 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1310190-1355044-1
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects > Rectangular Connectors > Rectangular Connector Housings
Packaging Bag
Part Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 4
Pitch 0.295" (7.50mm)
Number of Rows 1
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Ultra Librarian 3D Model Ultra Librarian 1355044-1 CAD Model

Description

● Connector System: Wire-to-Board<br />● Number of Positions: 4<br />● Connector & Housing Type: Housing for Female Terminals<br />● Centerline (Pitch): 7.5 mm [ .295 in ]● Sealable: No
