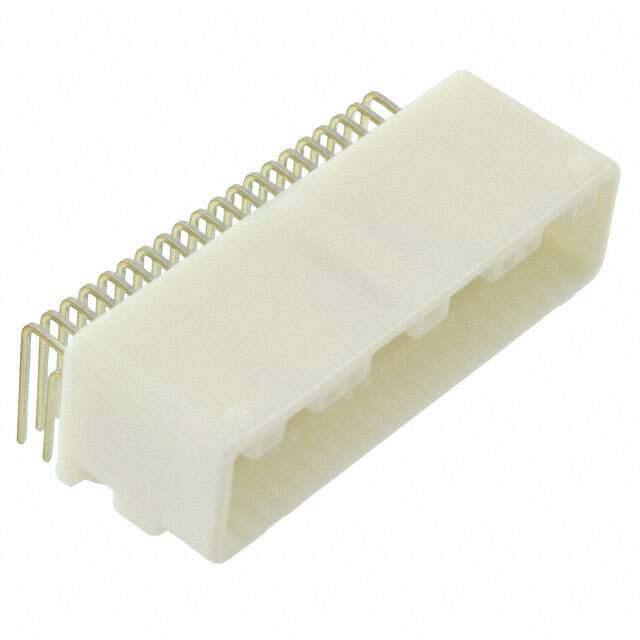

1318384-2 Real Image
Same model may have multiple batches, images only for reference.

1318384-2

Part No 1318384-2
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 40POS 2.2MM / Connector Header Through Hole, Right Angle 40 position 0.087" (2.20mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.087" (2.20mm)
Number of Positions 40
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.217" (5.50mm)
Contact Length - Post 0.157" (4.00mm)
Insulation Height 0.610" (15.49mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Mounting Flange
Temperature Range - Operating -30°C ~ 105°C
Material Flammability Rating UL94 HB
Insulation Color Natural
Voltage Rating 12VDC
Applications Automotive
Base Product Number 1318384
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names -1318384-2-SI,-1318384-2-LSI,1318384-2-ND,-1318384-2-CSI,A122205
Standard Package 9
Win Source Part Number 1027633-1318384-2
Ultra Librarian 3D Model Ultra Librarian 1318384-2 CAD Model

Description

This male pin header connector is designed for use in electronic devices with a board to cable/wire style.

  • Style: Board to Cable/Wire
  • Number of Positions: 40
  • Mounting Features: Mounting Flange
  • Pins Loaded: Male
  • Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
  • Insulation Color: Natural
  • Pitch: 0.087 inches (2.20mm)
  • Row Spacing: 0.118 inches (3.00mm)
  • Temperature Range: -30°C to 105°C
  • Package: Tube
  • Standard Package: 9
