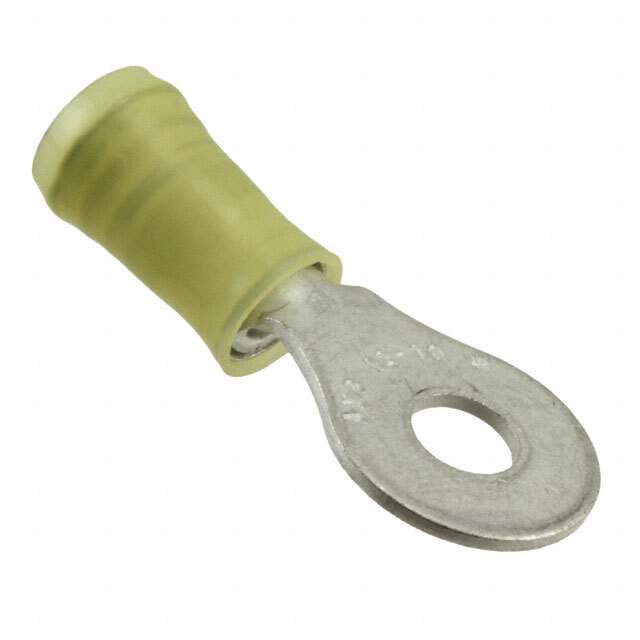

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Ring Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Terminal Type Circular
Stud/Tab Size M5 Stud
Thickness 0.039" (0.99mm)
Width - Outer Edges 0.531" (13.49mm)
Length - Overall 1.331" (33.81mm)
Mounting Free Hanging (In-Line)
Termination Crimp
Wire Gauge 10-12 AWG
Insulation Insulated
Features Serrated Termination
Color Yellow
Contact Material Copper
Contact Finish Tin
Insulation Diameter 0.150" ~ 0.252" (3.81mm ~ 6.40mm)
Material - Insulation Polyamide (PA), Nylon
Base Product Number 1302
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 130203-ND,A122722
Standard Package 500
Win Source Part Number 1333472-130203
Ultra Librarian 3D Model Ultra Librarian 130203 CAD Model

Description

TE Connectivity AMP Connectors' yellow circular ring connector is a high-quality crimp terminal that is insulated with polyamide (PA) nylon.

  • Termination Feature: serrated
  • Contact Finish: tin
  • Contact Material: copper
  • Wire Gauge: 10-12 AWG
  • RoHS Compliant: yes
  • Packaging: bulk
  • Mounting: free hanging (in-line)
  • Stud/Tab Size: M5
