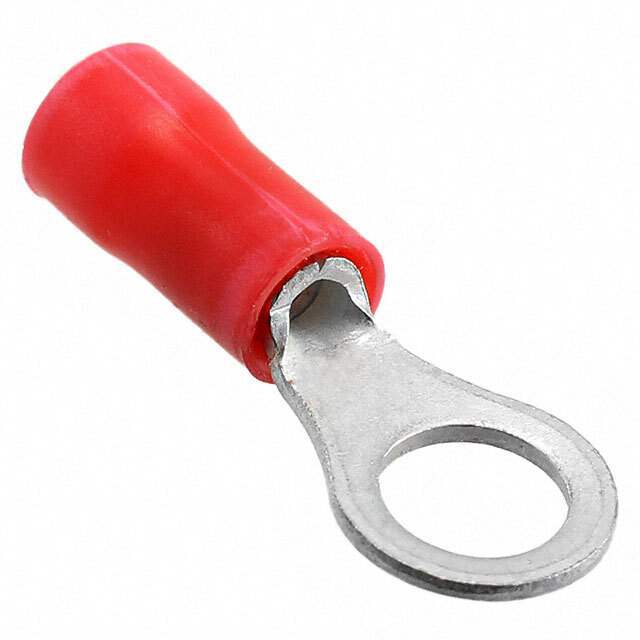

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1308696-130014
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects>Terminals>Ring Connectors
Packaging Bulk
Part Status Active
Terminal Type Circular
Stud/Tab Size M5 Stud
Thickness 0.032" (0.81mm)
Width - Outer Edges 0.315" (8.00mm)
Length - Overall 0.858" (21.79mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Insulation Insulated
Features Serrated Termination
Color Red
Contact Material Copper
Contact Finish Tin
Ultra Librarian 3D Model Ultra Librarian 130014 CAD Model

Description

Features ● Ring Terminal Product Type: Closed Ring Tongue Terminal<br />● Stud Size: M5<br />● Sealable: No<br />● Wire Insulation Support Retention Type: Insulation Support<br />● Number of Holes: 1<br />● Voltage Rating: 600 V<br />● Insulation Sleeve Color: Red<br />● Barrel Type：Closed<br />● Terminal Orientation：Straight ● Terminal Plating Material：Tin
