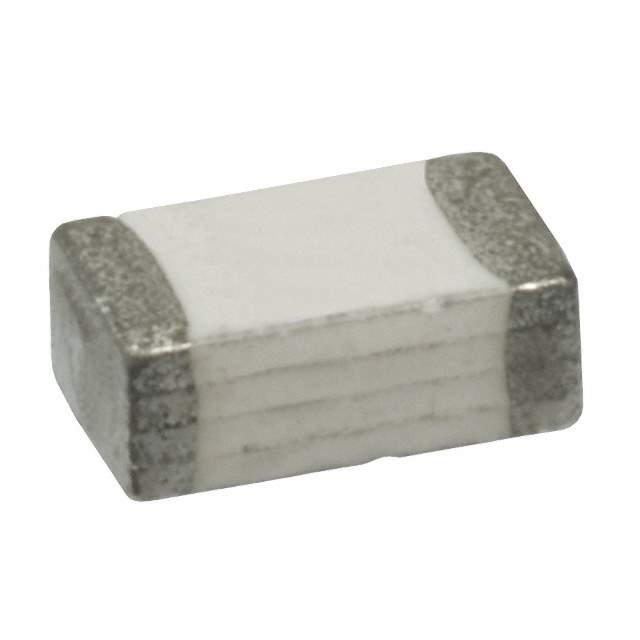

1206SFS550F/24-2 Real Image
Same model may have multiple batches, images only for reference.

1206SFS550F/24-2

Part No 1206SFS550F/24-2
Manufacturer TE Connectivity
Catalog Fuses
Description FUSE BOARD MOUNT 5.5A 24VDC 1206
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TE Connectivity
Standard Package 1
Category Circuit Protection
Family Fuses
Series SFS
Packaging Reel
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 5.5A
Voltage Rating - DC 24V
Response Time Slow
Package 1206 (3216 Metric)
Mounting Style SMD/SMT
Breaking Capacity @ Rated Voltage 50A
Melting I2t 6.4
Approvals UL
Operating Temperature Range -55°C ~ 125°C
Size / Dimension 0.126" L x 0.063" W x 0.038" H (3.20mm x 1.60mm x 0.97mm)
DC Cold Resistance 0.014 Ohm
Catalog SFS Series
Win Source Part Number 056924-1206SFS550F/24-2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 1206SFS550F/24-2 CAD Model

Description

Overview

The 1206SFS550F/24-2 offers premium protection against overcurrents, tailored for sensitive electronic circuits. Its compact form factor ensures suitability in space-constrained environments.

Features and Benefits

  • Rapid response time to overcurrent conditions
  • Highly reliable with stable performance over lifetime
  • Lead-free with RoHS compliance
  • Superior arc suppression capability
  • Wide temperature operating range

Applications

  • Battery charging systems
  • Consumer electronics
  • Communication devices
  • Automotive electronics
  • Power supply units

Additional Details

This fuse combines advanced material technology with a design focused on safety and reliability, ensuring your projects benefit from minimal maintenance and high protection standards.
