Same model may have multiple batches, images only for reference.

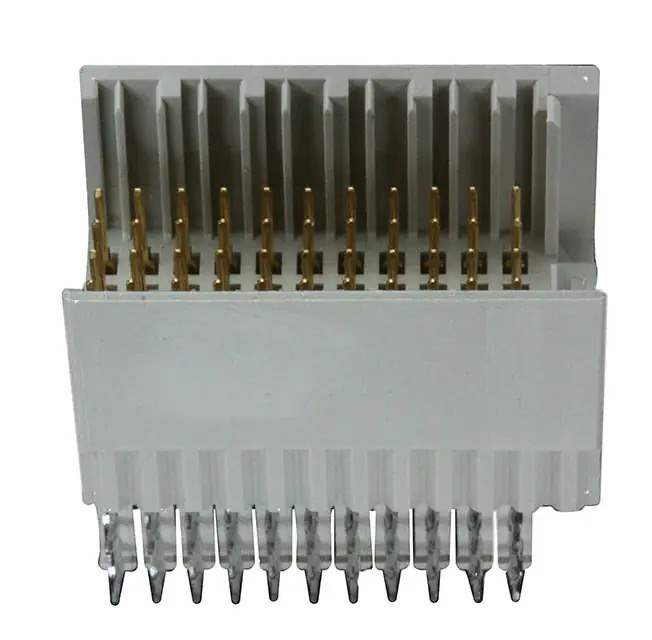

106012-1 Real Image
Same model may have multiple batches, images only for reference.

106012-1

Part No 106012-1
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description CONN HEADER 55POS 2MM PRESS-FIT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - Hard Metric, Standard
Mfr TE Connectivity
Series Z-PACK
Package Tray
Product Status Active
Connector Type Header, Male Pins
Connector Style C 11
Number of Positions 55
Number of Positions Loaded All
Pitch 0.079" (2.00mm)
Number of Rows 5
Mounting Type Board Edge, Through Hole, Right Angle
Termination Press-Fit
Connector Usage Backplane
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Current Rating (Amps) 1.5 A
Voltage Rating 500Vrms
Temperature Range - Operating -55°C ~ 125°C
Base Product Number 106012
Standard Package 22 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 853665-106012-1
Ultra Librarian 3D Model Ultra Librarian 106012-1 CAD Model

Description

The 853665-106012-1 is a hard metric connector from TE Connectivity.

  • Series: Z-PACK
  • Positions: 55
  • Pitch: 0.079 inches (2.00mm)
  • Mounting: Board Edge, Through-Hole, Right-Angle
  • Voltage Rating: 500Vrms
  • Current Rating: 1.5A
  • Connector Type: Backplane
  • Temperature Range: -55°C to 125°C
