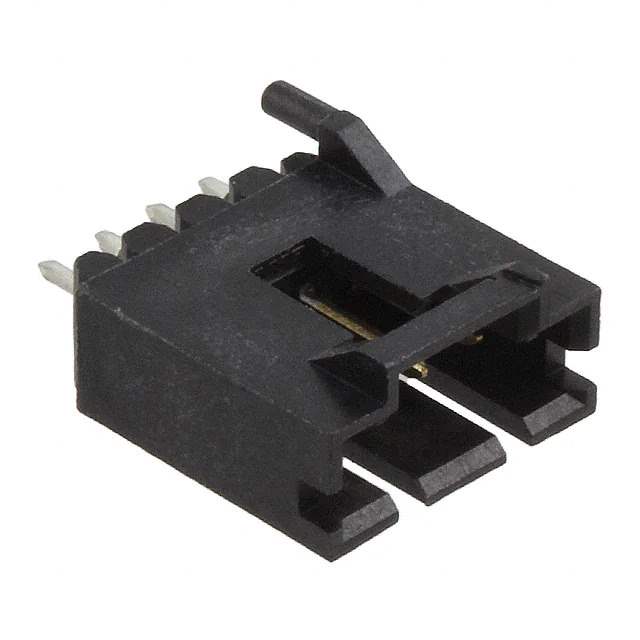

Same model may have multiple batches, images only for reference.

104809-3

Name: 104809-3
Brand: TE Connectivity
SKU: 853658
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	104809-3
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 4POS 2.54MM / Connector Header Through Hole 4 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	TE Connectivity
Series	AMPMODU MTE
Package	Tube
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	4
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Press-Fit, Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.130" (3.30mm)
Overall Contact Length	0.545" (13.84mm)
Insulation Height	0.535" (13.60mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin-Lead
Contact Material	Brass
Insulation Material	Thermoplastic
Features	Board Guide, Keying Slot
Temperature Range - Operating	-65°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Contact Finish Thickness - Post	100.0µin (2.54µm)
Applications	Automotive, General Purpose, Medical, Telecommunications
Base Product Number	104809
Standard Package	3,024 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	853658-104809-3
Ultra Librarian 3D Model	Ultra Librarian 104809-3 CAD Model

Description

The 853658-104809-3 is a male pin header connector from the AMPMODU MTE series, manufactured by TE Connectivity.

Series: AMPMODU MTE
Positions: 4
Row Design: Single
Board Guides: Yes
Keying Slot: Yes
Termination: Press-Fit/Solder
Material: Brass
Pitch: 0.100" (2.54mm)
Connection: Board-to-Board or Cable
