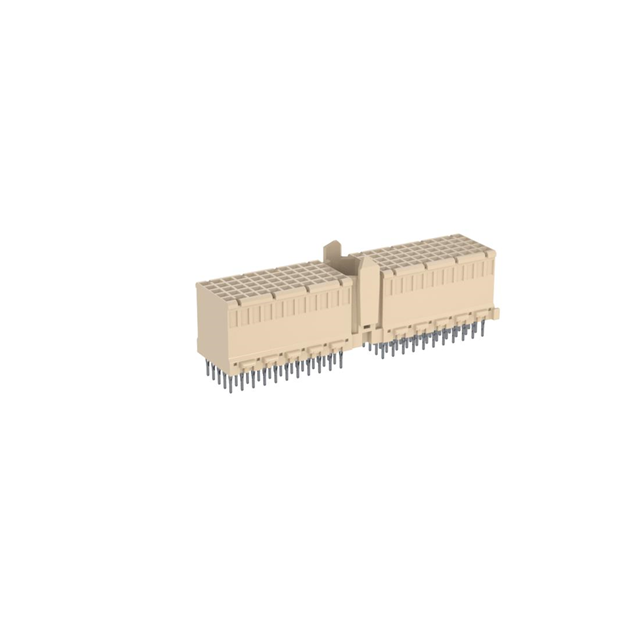

104702 Real Image
Same model may have multiple batches, images only for reference.

104702

Part No 104702
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description 2MM HM A 110POS F VERT 3.7MM / 110 Position Receptacle, Female Sockets Connector 0.079" (2.00mm) Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - Hard Metric, Standard
Mfr TE Connectivity
Series ERMET
Package Tray
Product Status Obsolete
Connector Type Receptacle, Female Sockets
Connector Style A 22
Number of Positions 110
Number of Positions Loaded All
Pitch 0.079" (2.00mm)
Number of Rows 5
Mounting Type Through Hole
Termination Press-Fit
Contact Finish Gold
Temperature Range - Operating -55°C ~ 125°C
Standard Package 32 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 905074-104702
Ultra Librarian 3D Model Ultra Librarian 104702 CAD Model

Description

The ERMET Backplane Connector is a high-performance connector designed for hard metric applications.

  • Pitch: 0.079" (2.00mm)
  • Connector Type: Receptacle, Female Sockets
  • Positions: 110 (5 rows)
  • Contact Finish: Gold
  • Termination: Press-Fit
  • Temperature Range: -55°C to 125°C
  • Standard Package: 32 pcs
  • Mounting Type: Through-Hole
  • REACH: Unaffected
  • HTSUS Code: 8536.69.4040
  • Manufacturer: TE Connectivity
