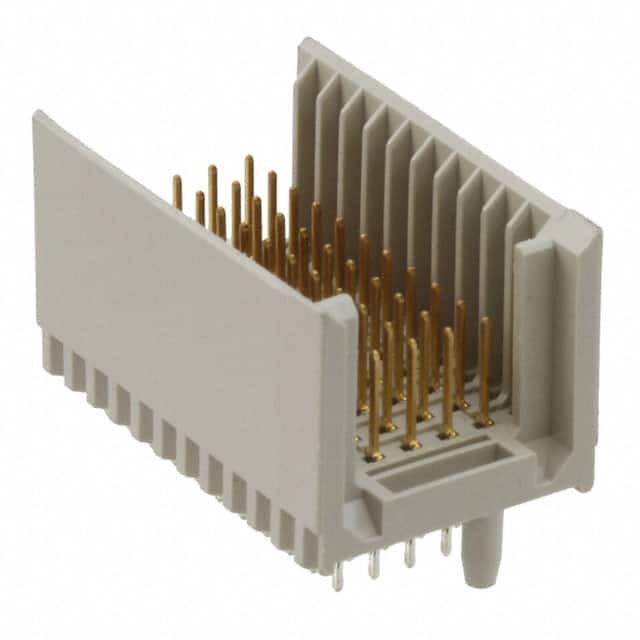

Same model may have multiple batches, images only for reference.
100159-1
Same model may have multiple batches, images only for reference.

100159-1

Part No 100159-1
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description CONN HEADER 55POS 2MM PRESS-FIT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - Hard Metric, Standard
Mfr TE Connectivity
Series Z-PACK
Package Tube
Product Status Active
Connector Type Header, Male Pins
Connector Style C 11
Number of Positions 55
Number of Positions Loaded All
Pitch 0.079" (2.00mm)
Number of Rows 5
Mounting Type Through Hole
Termination Press-Fit
Connector Usage Backplane
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Current Rating (Amps) 1.5 A
Voltage Rating 500Vrms
Temperature Range - Operating -55°C ~ 125°C
Features Board Guide
Base Product Number 100159
Standard Package 315 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 853544-100159-1
Ultra Librarian 3D Model Ultra Librarian 100159-1 CAD Model

Description

The 853544-100159-1 is a backplane connector from TE Connectivity's Z-PACK series. It is manufactured by TE Connectivity.

  • Positions: 55
  • Connector Type: Header, Male Pins
  • Application: Standard Hard Metric
  • Pitch: 0.079 inches (2.00mm)
  • Feature: Board Guide
  • Termination: Press-Fit
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Voltage Rating: 500Vrms
  • Current Rating: 1.5A
  • Temperature Range: -55°C to 125°C
