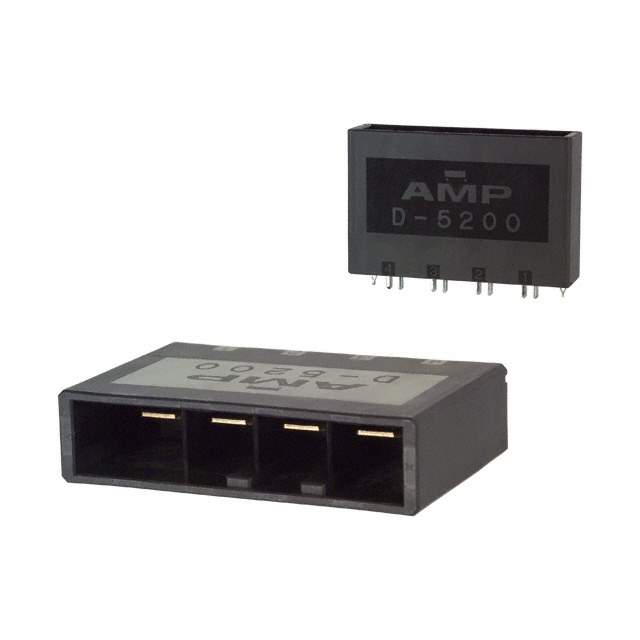

1-917542-2

Part No 1-917542-2
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER 4POS VERT KEY-X 15AU
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Status Active
Connector Type Header
Contact Type Tab
Pitch - Mating 0.400" (10.16mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 4
Number of Positions Loaded All
Number of Rows 1
Mounting Through Hole
Termination Solder
Fastening Type Detent Lock
Contact Length - Post 0.150" (3.81mm)
Insulation Height 1.260" (32.00mm)
Contact Shape Rectangular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15μin (0.38μm)
Contact Finish - Post Tin
Insulation Material Thermoplastic, Polyester, Glass Filled
Features Board Lock
Temperature Range - Operating -55°C to 105°C
Ingress Protection IP20
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating 30A
Voltage Rating 630V
Applications General Purpose, Industrial
Win Source Part Number 038803-1-917542-2
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1-917542-2 CAD Model

Description

Description

The 1-917542-2 is a high-quality electronic connector known for its durability and reliability. It is designed to provide a secure connection in various electronic devices, making it an essential component in the world of electronics.

Features

  • Robust construction for long-lasting performance
  • Easy installation and secure fit
  • Compatible with a wide range of devices

Benefits

  • Enhances the durability of electronic connections
  • Reduces maintenance costs due to its long lifespan
  • Improves overall device performance

Applications

  • Consumer electronics
  • Automotive systems
  • Industrial machinery
  • Telecommunications equipment

With its excellent design and reliable performance, the 1-917542-2 continues to be a preferred choice among industry professionals.
