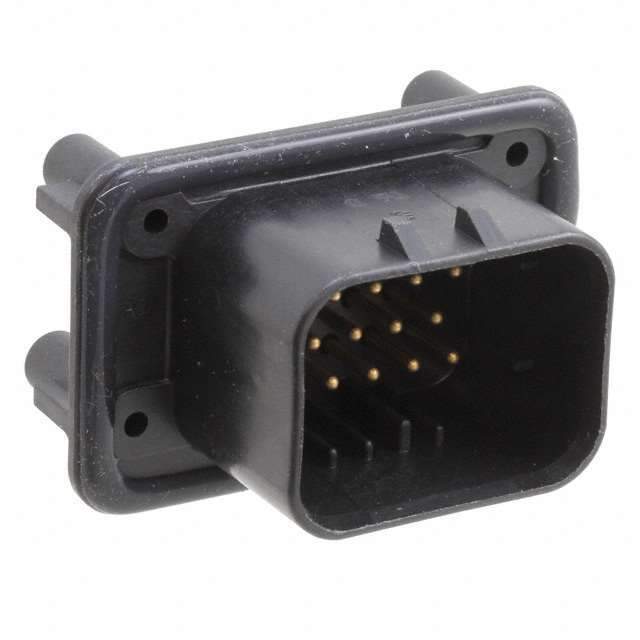

Same model may have multiple batches, images only for reference.

1-776262-1

Name: 1-776262-1
Brand: TE Connectivity
SKU: 1332434
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1-776262-1
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 14POS 4MM / Connector Header Panel Mount, Through Hole 14 position 0.157" (4.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	TE Connectivity AMP Connectors
Packaging	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.157" (4.00mm)
Number of Positions	14
Number of Rows	3
Row Spacing - Mating	0.157" (4.00mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	Panel Mount, Through Hole
Termination	Solder
Fastening Type	Locking Ramp
Contact Shape	Circular
Contact Finish - Mating	Gold-Palladium
Contact Material	Brass
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Mounting Flange, Sealed
Temperature Range - Operating	-40°C ~ 125°C
Insulation Color	Black
Current Rating (Amps)	Varies by Wire Gauge
Voltage Rating	250VAC
Applications	Automotive, Industrial
Base Product Number	776262
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	A106523,17762621,-1-776262-1-LSI,-1-776262-1-SI,1-776262-1-ND
Standard Package	36
Win Source Part Number	1332434-1-776262-1
Ultra Librarian 3D Model	Ultra Librarian 1-776262-1 CAD Model

Description

The TE Connectivity AMP Connectors Header Connector is a male pin type connector with a locking ramp fastening mechanism.

Manufacturer: TE Connectivity AMP Connectors
Connector Type: Header
Contact Gender: Male Pin
Positions Loaded: 14
Rows: 3
Mounting Style: Board-to-Cable/Wire
Pitch: 0.157 inches (4.00mm)
Voltage Rating: 250VAC
Contact Material: Brass
Contact Finish for Mating: Gold-Palladium
Sealed: Yes
Mounting Flange: Yes
Application: Automotive and Industrial
RoHS Compliant: Yes
Temperature Range: -40°C to 125°C
Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
Insulation Color: Black
Mounting Type: Panel Mount, Through-Hole
