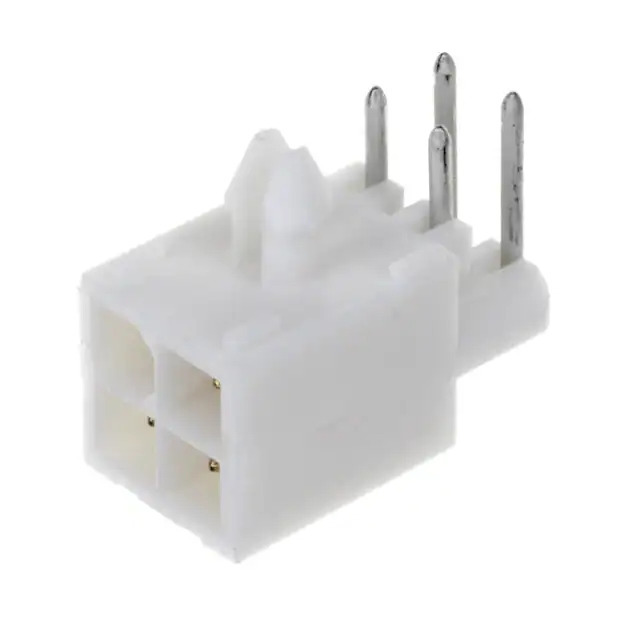

1-770968-1

Name: 1-770968-1
Brand: TE Connectivity
SKU: 1362616
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1-770968-1
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 4POS 4.14MM / Connector Header Through Hole, Right Angle 4 position 0.163" (4.14mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	TE Connectivity AMP Connectors
Series	Mini-Universal MATE-N-LOK
Package	Bulk
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.163" (4.14mm)
Number of Positions	4
Number of Rows	2
Row Spacing - Mating	0.163" (4.14mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Locking Ramp
Contact Length - Mating	-
Contact Length - Post	0.145" (3.68mm)
Overall Contact Length	-
Insulation Height	0.386" (9.80mm)
Contact Shape	Circular
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA), Nylon
Features	Board Lock
Temperature Range - Operating	-20°C ~ 105°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	White
Current Rating (Amps)	Varies by Wire Gauge
Voltage Rating	600VAC
Mated Stacking Heights	-
Contact Finish Thickness - Post	150.0µin (3.81µm)
Applications	General Purpose
Base Product Number	770968
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1362616-1-770968-1
Ultra Librarian 3D Model	Ultra Librarian 1-770968-1 CAD Model

Description

The TE Connectivity AMP Connectors Mini-Universal MATE-N-LOK is a male pin header connector designed for use in electronic applications.

Operating Temperature: -20°C ~ 105°C
Mounting Type: Through Hole, Right Angle
Connector Type: Header
Contact Type: Male Pin
Number of Positions: 4
Number of Rows: 2
Pitch - Mating: 0.163" (4.14mm)
Row Spacing - Mating: 0.163" (4.14mm)
Color: White
Features: Shrouded - 4 Wall
