Same model may have multiple batches, images only for reference.

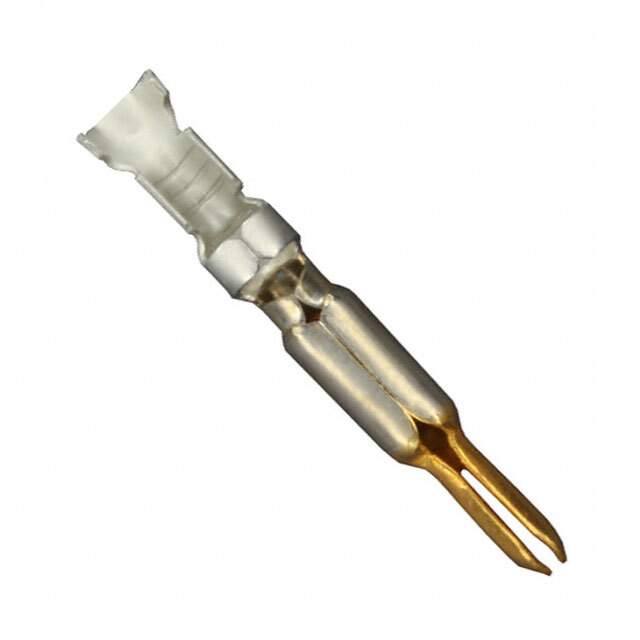

1-770007-0 Real Image
Same model may have multiple batches, images only for reference.

1-770007-0

Part No 1-770007-0
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN PIN 14-20AWG CRIMP GOLD / Split Pin Contact Gold 14-20 AWG Crimp
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Rectangular Connector Contacts
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Pin or Socket Split Pin
Contact Termination Crimp
Wire Gauge 14-20 AWG
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number 770007
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number A31706TR,A31706CT,17700070
Standard Package 4,000
Win Source Part Number 1334400-1-770007-0
Ultra Librarian 3D Model Ultra Librarian 1-770007-0 CAD Model

Description

TE Connectivity AMP Connectors Split Pin Rectangular Connector Contacts are ideal for high-density applications.

  • Application: high-density
  • Type: split pin rectangular connector contacts
  • Termination: crimp
  • Contact Finish: gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Wire Gauge: 14-20 AWG
  • Package: reel
  • Standard Package: 4,000
  • RoHS3 Compliant: yes
  • ECCN: EAR99
