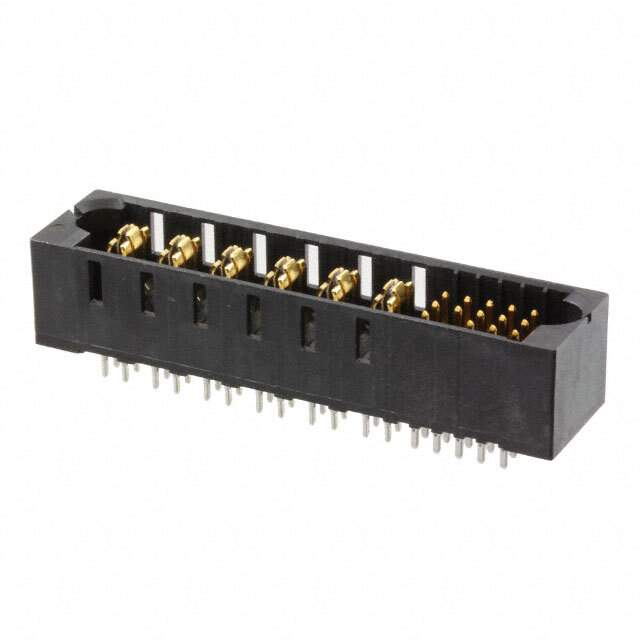

1-6450820-5 Real Image
Same model may have multiple batches, images only for reference.

1-6450820-5

Part No 1-6450820-5
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description CONN HEADER MULTI-BEAM 26POS PCB / 26 Connector Header, Male Pins and Blades Through Hole Black Multi-Beam
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors>Specialized
Manufacturer TE Connectivity AMP Connectors
Packaging Tray
Connector Type Header, Male Pins and Blades
Connector Style Multi-Beam
Number of Positions 26
Number of Positions Loaded All
Pitch 0.100" (2.54mm)
Number of Rows 4
Mounting Through Hole
Termination Press-Fit
Contact Layout, Typical 20 Signal, 15 Power
Features Board Lock, Mating Guide
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Color Black
Material Flammability Rating UL94 V-0
Temperature Range - Operating -20°C ~ 105°C
Base Product Number 6450820
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number A118248,2266-1-6450820-5,-1-6450820-5-SI
Standard Package 48
Win Source Part Number 1334381-1-6450820-5
Ultra Librarian 3D Model Ultra Librarian 1-6450820-5 CAD Model

Description

TE Connectivity AMP Connectors' 1334381-1-6450820-5 is a connector that is designed for specialized backplane connections.

  • Packaging: tray
  • Positions: 26
  • Pitch: 0.100" (2.54mm)
  • Color: black
  • Features: board lock and mating guide
  • Connector Type: header, male pins and blades
  • All Positions: loaded
  • Rows: 4
  • Termination: press-fit
  • Contact Finish: gold
  • Thickness: 30.0µin (0.76µm)
  • Connector Style: multi-beam
  • Voltage Rating: not specified
  • Material Flammability Rating: UL94 V-0
  • Standard Package: 48
  • Mounting: through hole
  • Connector Usage and Number of Columns: not specified
  • Contact Layout, Typical: 20 signal, 15 power
  • Temperature Range: -20°C to 105°C
  • REACH Status: vendor undefined
  • HTSUS: 8536.69.4040
  • Other Part Numbers: A118248, 2266-1-6450820-5, -1-6450820-5-SI
