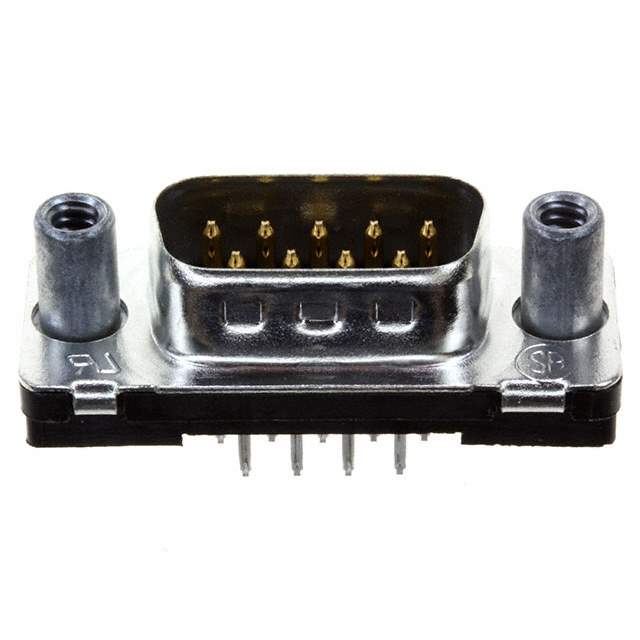

1-5747871-4 Real Image
Same model may have multiple batches, images only for reference.

1-5747871-4

Part No 1-5747871-4
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLUG 9POS VERT SLDR / 9 Position D-Sub Plug, Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub Connector Assemblies
Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
Mounting Through Hole
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Material Flammability Rating UL94 V-0
Current Rating (Amps) 6A
Features Grounding Indents
Voltage Rating 125V
Color Black
Dielectric Material Thermoplastic
Contact Material Brass
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 5747871
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 157478714,A32057,-1-5747871-4-SI,-1-5747871-4-CSI,2266-1-5747871-4
Standard Package 17
Win Source Part Number 1333201-1-5747871-4
Ultra Librarian 3D Model Ultra Librarian 1-5747871-4 CAD Model

Description

The TE Connectivity AMP Connectors 5747871-4 is a D-Sub connector assembly designed for use in various applications.

  • Connector Type: Plug with Male Pins
  • Mating Side Feature: Flange feature for female screwlock (4-40)
  • Number of Positions: 9
  • Mounting: Through-Hole
  • Contact Finish: Gold
  • Shell Material: Steel
  • Shell Plating: Tin Plated
  • Voltage Rating: 125V
  • Current: 6A
  • ROHS Compliant: Yes
