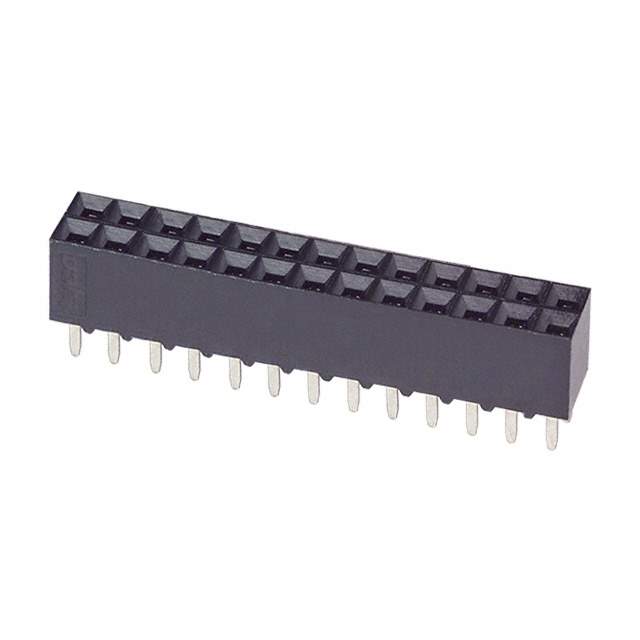

1-534998-3 Real Image
Same model may have multiple batches, images only for reference.

1-534998-3

Part No 1-534998-3
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN RECEPT 26POS .100 VERT DUAL
Datasheet
1-534998-3 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Tube/Rail
Status Active
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 26
Number of Positions Loaded All
Pitch - Mating 2.54mm
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30μin (0.76μm)
Insulation Color Black
Insulation Height 0.265" (6.73mm)
Contact Length - Post 0.125" (3.18mm)
Temperature Range - Operating -65°C to 125°C
Contact Finish - Post Tin-Lead
Current Rating 2A
Insulation Material Thermoplastic, Glass Filled
Contact Shape Square
Contact Finish Thickness - Post 150μin (3.81μm)
Win Source Part Number 113384-1-534998-3
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 1-534998-3 CAD Model

Description

1-534998-3 Terminal Block

The 1-534998-3 Terminal Block is perfect for simplifying circuit management, offering a stable and secure connection point for wiring.

  • Applications: Control panels, power distribution systems, renewable energy setups
  • Features: Robust design, easy access, high current rating
  • Benefits: Simplifies maintenance, allows for easy modifications, reliable for high current loads

This terminal block is designed to accommodate a wide range of wiring requirements, making it a staple in electrical systems design.
