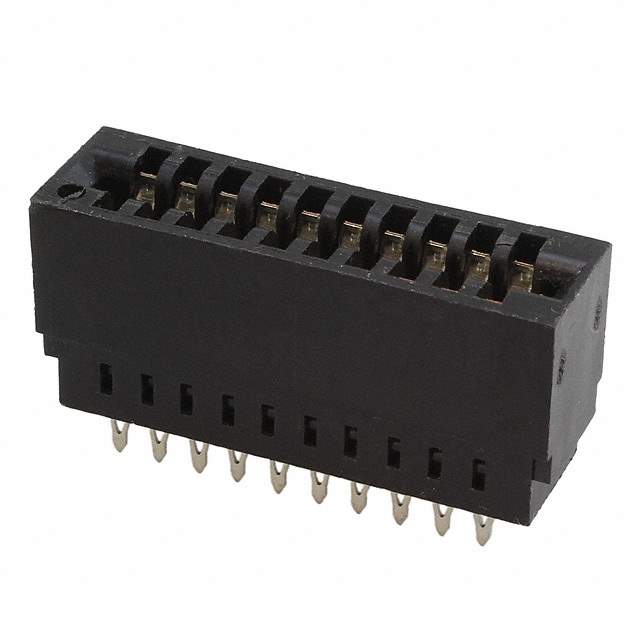

1-5147490-0 Real Image
Same model may have multiple batches, images only for reference.

1-5147490-0

Part No 1-5147490-0
Manufacturer TE Connectivity
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FMALE 20POS 0.100 / 20 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors>Edgeboard Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions 20
Card Thickness 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows 2
Pitch 0.100" (2.54mm)
Read Out Dual
Mounting Through Hole
Termination Press-Fit
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Color Black
Material - Insulation Polyester, Glass Filled
Base Product Number 5147490
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 1-5147490-0-ND,2266-1-5147490-0,A112313,-1-5147490-0-SI
Standard Package 15
Win Source Part Number 1333991-1-5147490-0
Ultra Librarian 3D Model Ultra Librarian 1-5147490-0 CAD Model

Description

The 1333991-1-5147490-0 is a card edge connector manufactured by TE Connectivity AMP Connectors.

  • Type: Dual-Edge, Non-Specified
  • Positions: 20
  • Pitch: 0.100" (2.54mm)
  • Packaging: Bulk
  • Standard Package: 15 units
  • Termination: Press-Fit
  • Mounting: Through-Hole
  • Color: Black
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0μin (0.76μm)
  • Contact Material: Phosphor Bronze
  • Insulation Material: Polyester, Glass-Filled
  • ECCN: EAR99
  • MSL Level: 1 (unlimited)
  • ROHS3: Compliant
