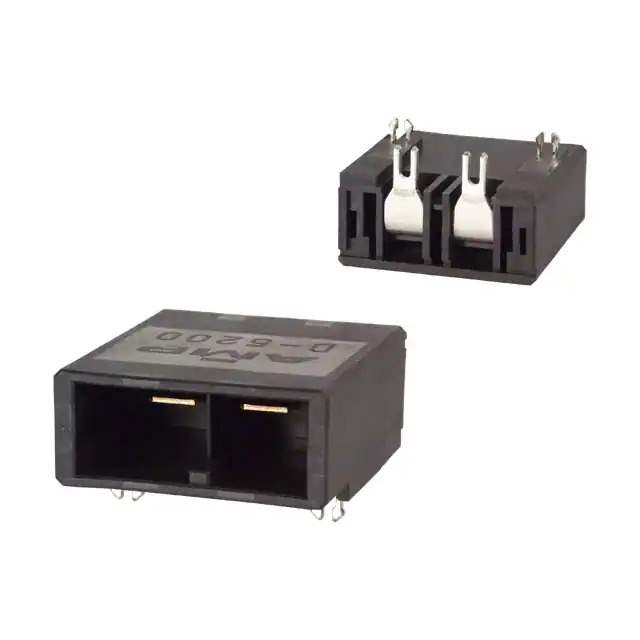

1-353079-2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series Dynamic D-5200
Package Bulk
Product Status Active
Connector Type Header
Contact Type Tab
Pitch - Mating 0.400" (10.16mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Length - Post 0.150" (3.81mm)
Insulation Height 0.547" (13.90mm)
Contact Shape Rectangular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic, Polyester, Glass Filled
Features Board Lock
Temperature Range - Operating -55°C ~ 105°C
Ingress Protection IP20
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 30A
Voltage Rating 630V
Applications General Purpose, Industrial
Base Product Number 353079
Standard Package 16 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 853951-1-353079-2
Ultra Librarian 3D Model Ultra Librarian 1-353079-2 CAD Model

Description

The Dynamic D-5200 series is a versatile range of male pin headers designed for use in various electronic applications.

  • Part Number: 853951-1-353079-2
  • Positions: 2
  • Contact Type: Tab
  • Mounting Type: Through-Hole, Right Angle
  • Fastening Type: Detent Lock
  • Contact Material: Copper Alloy
  • Voltage Rating: 630V
  • Temperature Range: -55°C to 105°C
  • Shrouded: 4 Walls
  • Pitch: 0.400" (10.16mm)
  • Contact Finish: Gold
  • Insulation Material: Thermoplastic, Polyester, Glass-Filled
  • Flammability Rating: UL94 V-0
  • Features: Board Lock
  • Package: Bulk
  • Package Quantity: 16 pieces
  • Product Status: Active
  • Manufacturer: TE Connectivity
