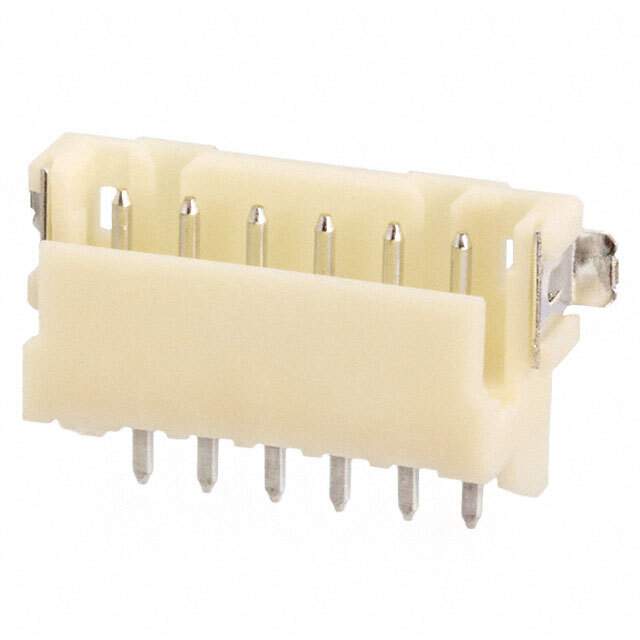

1-292173-6 Real Image
Same model may have multiple batches, images only for reference.

1-292173-6

Part No 1-292173-6
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 6POS 2MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TE Connectivity AMP Connectors
Packaging Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 6
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style Surface Mount, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.165" (4.20mm)
Insulation Height 0.228" (5.80mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA6T), Nylon 6T, Glass Filled
Features Board Guide, Solder Retention
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 125VAC
Applications General Purpose
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 810018-1-292173-6
Ultra Librarian 3D Model Ultra Librarian 1-292173-6 CAD Model

Description

The TE Connectivity AMP Connectors 810018-1-292173-6 header connector is a surface mount, right angle device that features a board guide and solder retention.

  • Voltage Rating: 125VAC
  • Material Flammability Rating: UL94 V-0
  • Pitch-Mating: 0.079" (2.00mm)
  • Shrouded: 4 Walls
  • Contact Shape: Square
  • Insulation Height: 0.228" (5.80mm)
  • Current Rating: Varies by wire gauge
  • Packaging: Reel
