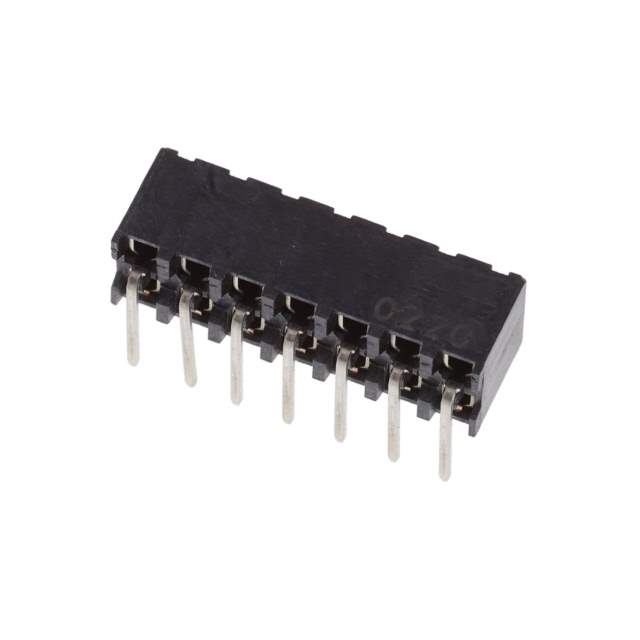

1-2314924-4 Real Image
Same model may have multiple batches, images only for reference.

1-2314924-4

Part No 1-2314924-4
Manufacturer TE Connectivity
Catalog Rectangular - Board to Board Connectors
Description 14P,2MM,B-B,REC,DRHZ,2.8,0.1AU,T  /  14 Position Receptacle Connector 0.079" (2.00mm) Through Hole, Right Angle Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr TE Connectivity AMP Connectors
Series AMPMODU
Package Tape & Reel (TR),Cut Tape (CT)
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 14
Number of Positions Loaded All
Pitch - Mating 0.079" (2.00mm)
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3.94µin (0.100µm)
Insulation Color Black
Insulation Height 0.161" (4.10mm)
Contact Length - Post 0.110" (2.79mm)
Temperature Range - Operating -40°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 2A
Voltage Rating 125VAC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 12.0µin (0.30µm)
Base Product Number 2314924
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names 17-1-2314924-4CT,-1076-1-2314924-4-SI,17-1-2314924-4TR
Standard Package 400
Win Source Part Number 1034624-1-2314924-4
Ultra Librarian 3D Model Ultra Librarian 1-2314924-4 CAD Model

Description

The TE Connectivity AMPMODU series connector is a 14-position female socket with a receptacle connector type.

  • Connector Type: receptacle
  • Applications: Board to Board
  • Pitch: 0.079" (2.00mm)
  • Row Spacing: 0.079" (2.00mm)
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold
  • Voltage Rating: 125VAC
  • Current Rating: 2A
  • Mounting Type: Through Hole
  • Orientation: Right Angle
  • Package: Tape & Reel
  • Packaging: 400
  • ECCN: EAR99
