1-2199298-4 TE Connectivity
Same model may have multiple batches, images only for reference.

1-2199298-4

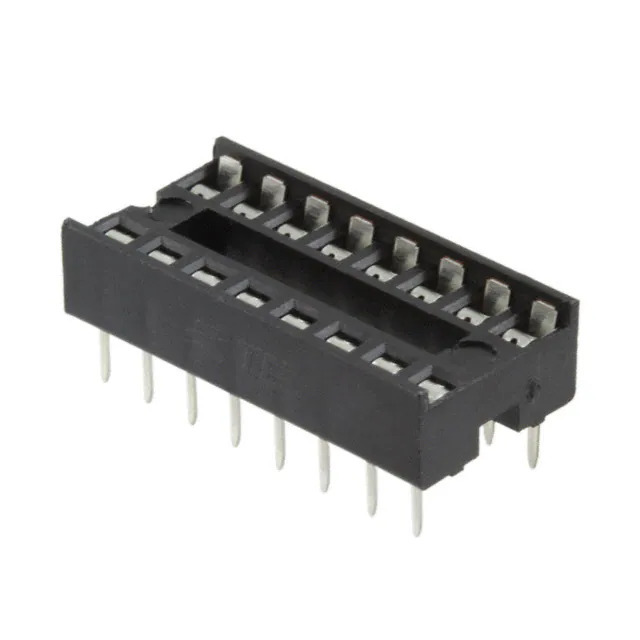

Part No 1-2199298-4
Manufacturer TE Connectivity
Catalog Sockets for ICs, Transistors
Description CONN IC DIP SOCKET 16POS TIN / 16 (2 x 8) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Tin Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Sockets for ICs, Transistors - IC Sockets
Mfr TE Connectivity AMP Connectors
Series Diplomate DL
Package Tube
Product Status Active
Type DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) 16 (2 x 8)
Pitch - Mating 0.100" (2.54mm)
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 60.0µin (1.52µm)
Contact Material - Mating Phosphor Bronze
Mounting Type Through Hole
Features Open Frame
Termination Solder
Pitch - Post 0.100" (2.54mm)
Contact Finish - Post Tin
Contact Finish Thickness - Post -
Contact Material - Post Brass, Copper
Housing Material Polybutylene Terephthalate (PBT), Glass Filled
Temperature Range - Operating -40°C ~ 105°C
Termination Post Length 0.118" (3.00mm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1 A
Contact Resistance 20mOhm
Base Product Number 2199298
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1363447-1-2199298-4
Ultra Librarian 3D Model Ultra Librarian 1-2199298-4 CAD Model

Description

The Diplomate DL series from TE Connectivity AMP Connectors is a range of sockets for ICs and transistors. This socket has a DIP type with a 0.3" (7.62mm) row spacing.

  • Series: Diplomate DL
  • Socket Type: DIP
  • Row Spacing: 0.3" (7.62mm)
  • Temperature Range: -40°C to 105°C
  • Current Rating: 1A
  • Pitch: 0.100" (2.54mm)
  • Termination: Solder
  • Contact Finish: Tin, 60.0µin (1.52µm) Thickness
  • Flammability Rating: UL94 V-0
  • Material: Polybutylene Terephthalate (PBT) with Glass Filling
  • Number of Positions: 16 (2 x 8 grid)
