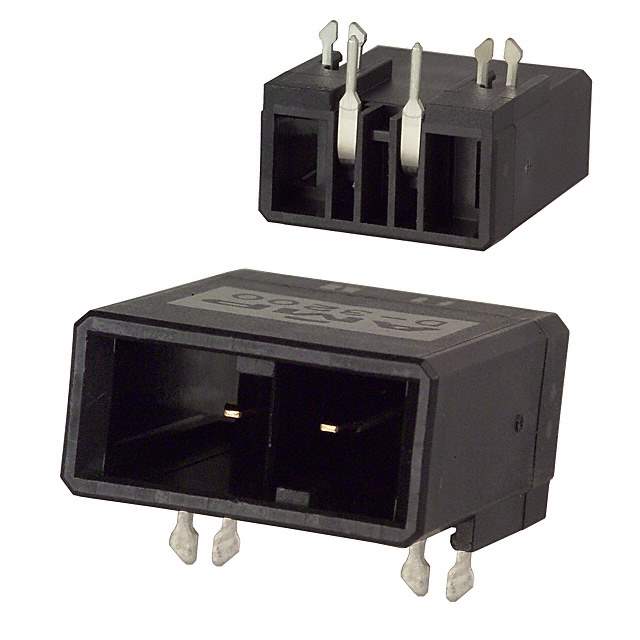

1-179276-2 Real Image
Same model may have multiple batches, images only for reference.

1-179276-2

Part No 1-179276-2
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 2POS 5.08MM / Connector Header Through Hole, Right Angle 2 position 0.200" (5.08mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Header
Contact Type Tab
Pitch - Mating 0.200" (5.08mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Length - Post 0.150" (3.81mm)
Insulation Height 0.368" (9.35mm)
Contact Shape Rectangular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic, Polyester, Glass Filled
Features Board Lock
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Voltage Rating 600V
Applications General Purpose, Industrial
Base Product Number 179276
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number A29545-NDR,-1-179276-2-CSI,11792762,A29545,-1-179276-2-LSI,-1-179276-2-SI,2266-1-179276-2
Standard Package 26
Win Source Part Number 1332352-1-179276-2
Ultra Librarian 3D Model Ultra Librarian 1-179276-2 CAD Model

Description

The TE Connectivity AMP Connectors header is a male pin connector with a board lock feature and a 0.200" (5.08mm) pitch.

  • Positions Loaded: 2
  • Mounting: Through-Hole, Right Angle
  • Contact Material: Copper Alloy
  • Contact Finish (Mating): Gold
  • Contact Finish (Post): Tin
  • Flammability Rating: UL94 V-0
  • Temperature Range: -55°C to 105°C
  • Voltage Rating: 600V
  • Applications: General Purpose, Industrial
  • Shrouding: Shrouded - 4 Wall
  • Contact Shape: Rectangular
  • Contact Length (Post): 0.150" (3.81mm)
  • Insulation Height: 0.368" (9.35mm)
  • Packaging: Bulk
  • Standard Package Size: 26
