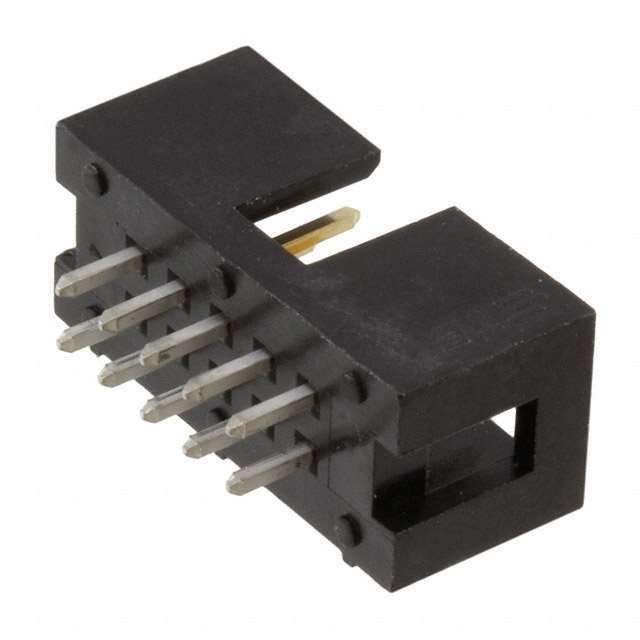

Same model may have multiple batches, images only for reference.

1-1634688-0

Name: 1-1634688-0
Brand: TE Connectivity
SKU: 1332510
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	1-1634688-0
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 10POS 2.54MM / Connector Header Through Hole 10 position 0.100" (2.54mm)
Datasheet	1-1634688-0 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	TE Connectivity AMP Connectors
Packaging	Bulk
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.228" (5.80mm)
Contact Length - Post	0.126" (3.20mm)
Insulation Height	0.343" (8.71mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA6T), Nylon 6T
Features	Keying Slot
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Contact Finish Thickness - Post	80.0µin (2.03µm)
Base Product Number	1634688
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	1-1634688-0-ND,116346880,A104906
Standard Package	320
Win Source Part Number	1332510-1-1634688-0
Ultra Librarian 3D Model	Ultra Librarian 1-1634688-0 CAD Model

Description

The TE Connectivity AMP Connectors 1332510-1-1634688-0 is a bulk-packaged, through-hole-mountable, 10-position, male pin connector with two rows.

Keying Slot: yes
Fastening Type: push-pull
Current Rating: 3A
Material Flammability: UL94 V-0
Insulation Material: polyamide (PA6T) and nylon 6T
Pitch-Mating: 0.100” (2.54mm)
Row Spacing-Mating: 0.100” (2.54mm)
Contact Finish-Mating: gold
Contact Finish-Post: tin
Insulation Color: black
Contact Shape: square
MSL Level: 1 (unlimited)
HTSUS Code: 8536.69.4040
