Same model may have multiple batches, images only for reference.

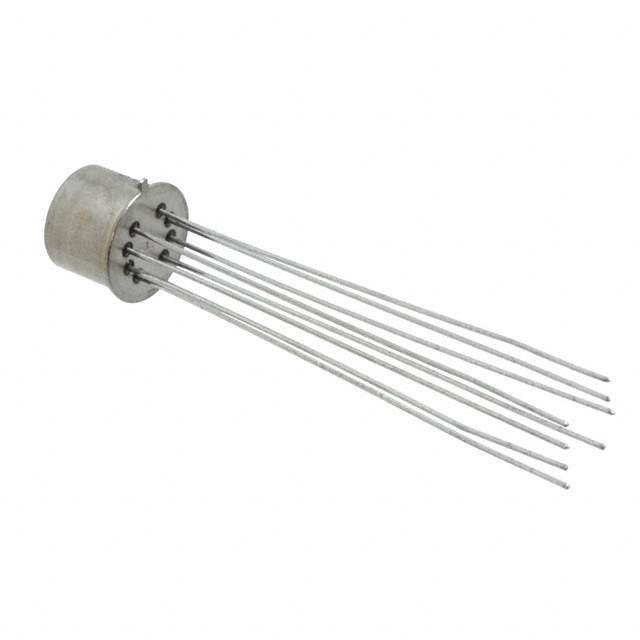

1-1617122-5 Real Image
Same model may have multiple batches, images only for reference.

1-1617122-5

Part No 1-1617122-5
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps
Description Electromechanical Relay 26.5VDC 1.56KOhm 1A DPDT(9.4x10.29x7.11)mm THT Military Relay
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Coil Current 16.99 mA
Coil Power 450 mW
Coil Resistance 1.56 kΩ
Coil Voltage (DC) 26.5 V
Contact Current Rating 1 A
ELV Non-Compliant
Max Current Rating 1 A
Maximum Operating Temperature 125 °C
Max Voltage Rating (DC) 28 V
Min Operating Temperature -65 °C
Mount Through Hole
Number of Pins 8
RoHS Non-Compliant
Throw Configuration DPDT
Win Source Part Number 1007466-1-1617122-5
Categories Signal Relays,Up to 2 Amps
Manufacturer TE Connectivity
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 1-1617122-5 CAD Model

Description

The TE Connectivity signal relay is a high-quality relay with a DPDT throw configuration.

  • Throw Configuration: DPDT
  • Coil Resistance: 1.56 kΩ
  • Maximum Current Rating: 1 A
  • Coil Voltage: 26.5 V DC
  • Coil Current: 16.99 mA
  • Maximum Operating Temperature: 125 °C
  • Minimum Operating Temperature: -65 °C
  • Mount: Through-Hole
  • RoHS Compliant: No
  • ELV Compliant: No
  • Pins: 8
  • Coil Power: 450 mW
  • Supply: Short
  • Popularity: Low
  • Alternative Parts: 1-1617121-1, JMAW-26XP, JMAWD-26XM, TQ2-L2-24V, HX2-24V, TQ2H-L2-24VJMACD-26XP, JMACD26XP
