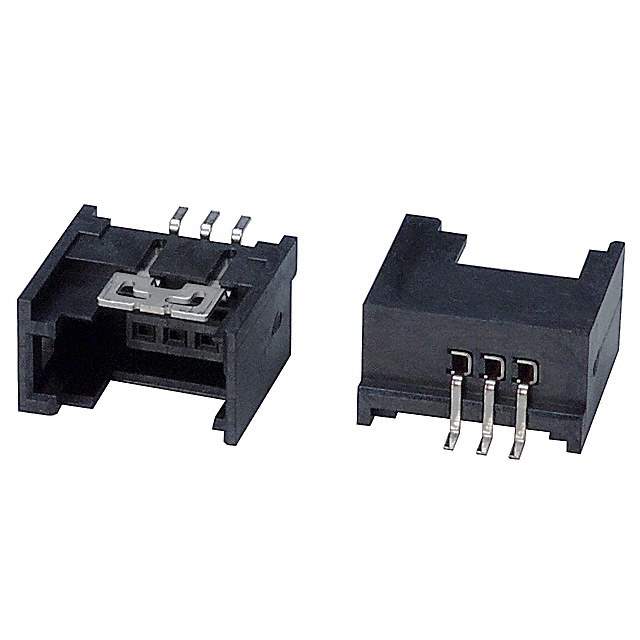

Part No 1-1565994-3
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER 3POS HORIZONAL SMD
Datasheet
1-1565994-3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series RITS
Packaging Reel package
Connector Type Header
Contact Type Female Socket
Style Board to Cable/Wire
Number of Positions 3
Number of Positions Loaded All
Pitch - Mating 0.079" (2.00mm)
Number of Rows 1
Mounting Surface Mount, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 8μin (0.20μm)
Insulation Color Black
Insulation Height 0.303" (7.70mm)
Operating Temperature Range -30°C ~ 75°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Voltage Rating 32VDC
Insulation Material Thermoplastic
Contact Shape Square
Contact Material Copper Alloy
Contact Finish Thickness - Post 39μin (1.00μm)
Win Source Part Number 760235-1-1565994-3
Popularity Medium
Supply and Demand Status Limited
Family Name 1565994
ECCN EAR99
Country of Origin China, Japan, United States of America
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian 1-1565994-3 CAD Model

Description

The 760235-1-1565994-3 is a 3-position header connector from TE Connectivity AMP Connectors.

  • Series: RITS
  • Packaging: Reel
  • Pitch-Mating: 0.079 inches (2.00mm)
  • Connection Style: Board-to-Cable/Wire
  • Contact Finish-Mating: Gold (8μin (0.20μm) thick)
  • Contact Finish-Post: Tin (39μin (1.00μm) thick)
  • Voltage Rating: 32VDC
  • Flammability Rating: UL94 V-0
