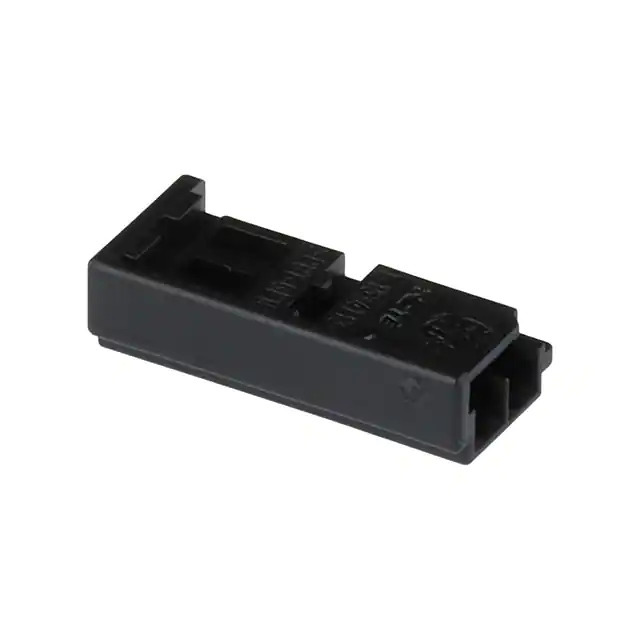

Same model may have multiple batches, images only for reference.

1-1534113-1

Name: 1-1534113-1
Brand: TE Connectivity
SKU: 1365972
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	1-1534113-1
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN RCPT HSG 2POS 2.50MM / 2 Rectangular Connectors - Housings Receptacle Black 0.098" (2.50mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr	TE Connectivity AMP Connectors
Series	Micro Quadlok
Package	Bulk
Product Status	Active
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	2
Pitch	0.098" (2.50mm)
Number of Rows	1
Row Spacing	-
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	-
Color	Black
Features	-
Temperature Range - Operating	-40°C ~ 80°C
Note	Contacts Not Included
Base Product Number	1534113
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8538.90.6000
Win Source Part Number	1365972-1-1534113-1
Ultra Librarian 3D Model	Ultra Librarian 1-1534113-1 CAD Model

Description

The Micro Quadlok is a rectangular connector housing designed for various electronic applications by TE Connectivity AMP Connectors.

Temperature Range: -40°C to 80°C
Mounting Type: Free Hanging (In-Line)
Contact Termination: Crimp
Connector Type: Receptacle
Contact Gender: Female Socket
Number of Positions: 2
Number of Rows: 1
Pitch: 0.098" (2.50mm)
Color: Black
Series: Micro Quadlok
Product Status: Active
Packaging: Bulk
Note: Contacts are not included
