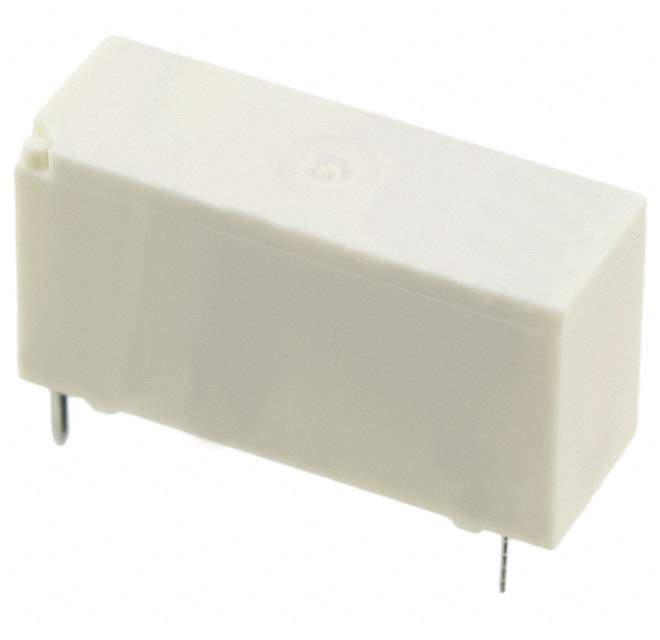

The 1-1393222-5 is a signal relay manufactured by TE Connectivity. It's designed for low-power switching applications, handling currents up to 2 Amps.

Applications

• Telecommunications Equipment
• Industrial Control Systems
• Security Systems
• Instrumentation
• Consumer Electronics

Features

• Contact Rating: Up to 2 Amps
• Coil Voltage: Typically 5VDC, 12VDC or 24VDC (Specific voltage depends on the exact model variant)
• Compact Size
• Through-Hole Mounting
• Sealed Construction (depending on specific model)

Benefits

• Low Power Consumption
• Reliable Switching Performance
• Long Life Expectancy
• Easy to Integrate into PCBs
• Provides Electrical Isolation

Technical Specifications

The 1-1393222-5 signal relay is a through-hole mount component. Contact configuration can vary (SPDT, DPDT, etc.), influencing the number of terminals. Coil resistance and operate/release times are key parameters. Insulation resistance and dielectric strength are important for safety and isolation. Specific coil voltage should be verified from the datasheet. Contact material is typically a gold alloy to ensure reliable low-level switching. The relay is designed to operate within a specific temperature range. The sealed construction offers protection against dust and humidity.

It is suited for applications where low power consumption and reliable signal switching are essential. The relay offers electrical isolation between the control circuit and the load, preventing interference and protecting sensitive components. The small size allows for high-density PCB layouts. The sealed version improves reliability in harsh environments.
