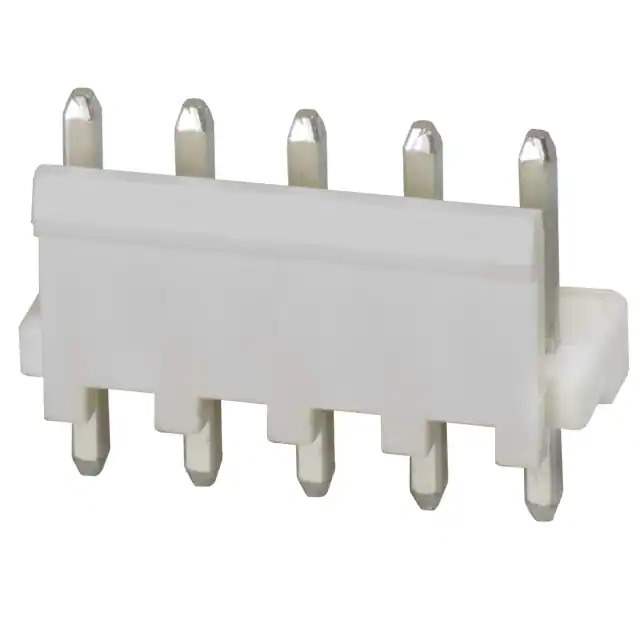

1-1318300-5 Real Image
Same model may have multiple batches, images only for reference.

1-1318300-5

Part No 1-1318300-5
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 5POS 3.96MM / Connector Header Through Hole 5 position 0.156" (3.96mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series Economy Power
Package Tube
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.156" (3.96mm)
Number of Positions 5
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.303" (7.70mm)
Contact Length - Post 0.146" (3.70mm)
Overall Contact Length 0.567" (14.40mm)
Insulation Height 0.118" (3.00mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Temperature Range - Operating -25°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 7.5A
Voltage Rating 250VAC
Applications General Purpose, Industrial, Lighting
Base Product Number 1318300
Standard Package 24 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 845102-1-1318300-5
Ultra Librarian 3D Model Ultra Librarian 1-1318300-5 CAD Model

Description

The 845102-1-1318300-5 is a male pin header connector from the Economy Power series.

  • Positions: 5
  • Applications: General Purpose, Industrial, Lighting
  • Connector Type: Header
  • Contact Type: Male Pin
  • Row Configuration: Single Row
  • Termination Style: Solder
  • Fastening Type: Friction Lock
  • Package: Tube
  • Standard Package: 24 pieces
  • Contact Material: Brass
  • Voltage Rating: 250VAC
  • Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
  • Pitch: 0.156 inches (3.96mm)
  • Contact Finish: Tin
  • Insulation Color: Natural
  • Mounting Type: Through Hole
  • Shrouded: 1 Wall
  • Contact Length: 0.146 inches (3.70mm)
  • Overall Contact Length: 0.567 inches (14.40mm)
  • Insulation Height: 0.118 inches (3.00mm)
  • Contact Shape: Square
  • Operating Temperature: -25°C to 105°C
  • MSL Level: 1 (Unlimited)
  • Current Rating: 7.5A
  • REACH: Unaffected
  • HTSUS Code: 8536.69.4040
  • Manufacturer: TE Connectivity
  • Base Product Number: 1318300
  • Product Status: Active
