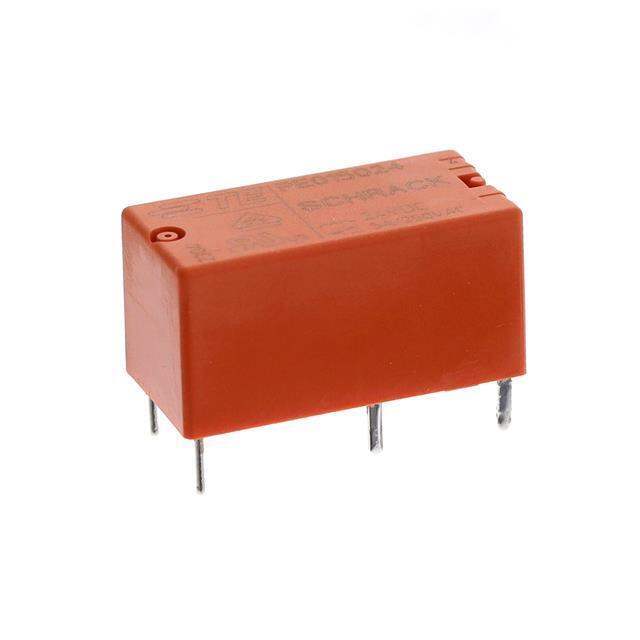

Same model may have multiple batches, images only for reference.
1-1393219-5 TE Connectivity Potter & Brumfield Relays
Same model may have multiple batches, images only for reference.

1-1393219-5

Part No 1-1393219-5
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 5A 24V
Datasheet
1-1393219-5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays >Power Relays, Over 2 Amps
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging  Tube
Part Status Active
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 5 A
Switching Voltage 400VAC - Max
Load - Max Switching 2000VA
Ultra Librarian 3D Model Ultra Librarian 1-1393219-5 CAD Model

Description

General Purpose Power Relay, DC, Monostable, 1 Form C SPDTCO, 5 A Contact Rating, 24 VDC Coil Voltage, SCHRACK Miniature PCB Relay PE bistable
