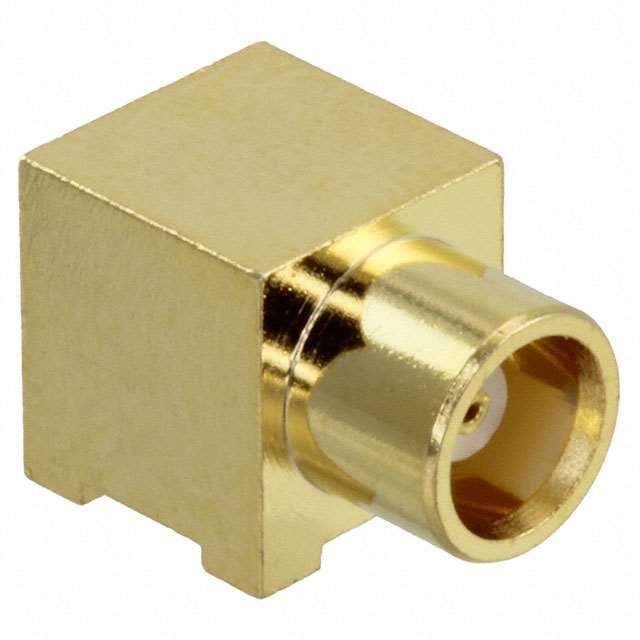

1-1337583-0 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

1-1337583-0

Part No 1-1337583-0
Manufacturer TE Connectivity
Catalog Coaxial Connectors (RF) - Adapters
Description CONN MCX JACK R/A 50OHM SMD
Datasheet
1-1337583-0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1308281-1-1337583-0
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects >Coaxial Connectors (RF) >Coaxial Connector (RF) Assemblies
Packaging Bulk
Part Status Active
Connector Style MCX
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50 Ohms
Mounting Type Surface Mount, Right Angle
Ultra Librarian 3D Model Ultra Librarian 1-1337583-0 CAD Model

Description

MCX Connector Jack, Female Socket 50 Ohms Surface Mount, Right Angle Solder
