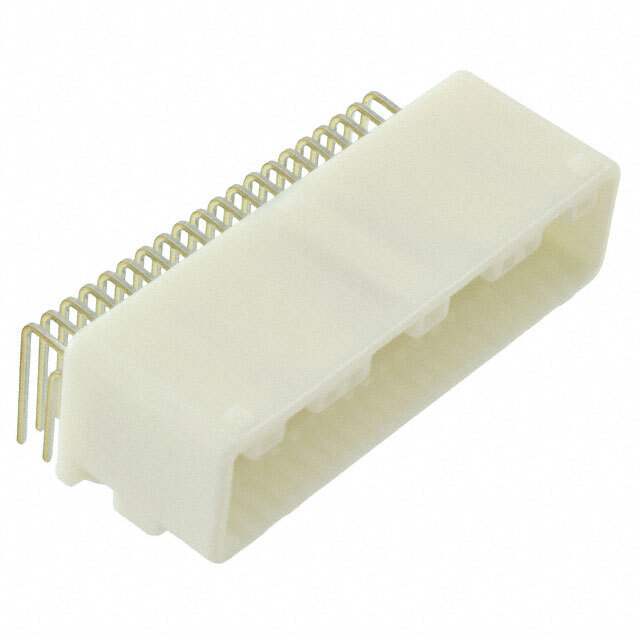

1-1318384-9 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

1-1318384-9

Part No 1-1318384-9
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 40POS 2.2MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1206553-1-1318384-9
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects -Rectangular Connectors- Headers, Male Pins
Package Tube
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.087" (2.20mm)
Row Spacing - Mating 0.118" (3.00mm)
Mounting Type Through Hole, Right Angle
Style oard to Cable/Wire
Contact Length - Post 0.157" (4.00mm)
Ultra Librarian 3D Model Ultra Librarian 1-1318384-9 CAD Model

Description

Connector Header Through Hole, Right Angle 40 position 0.087" (2.20mm)
