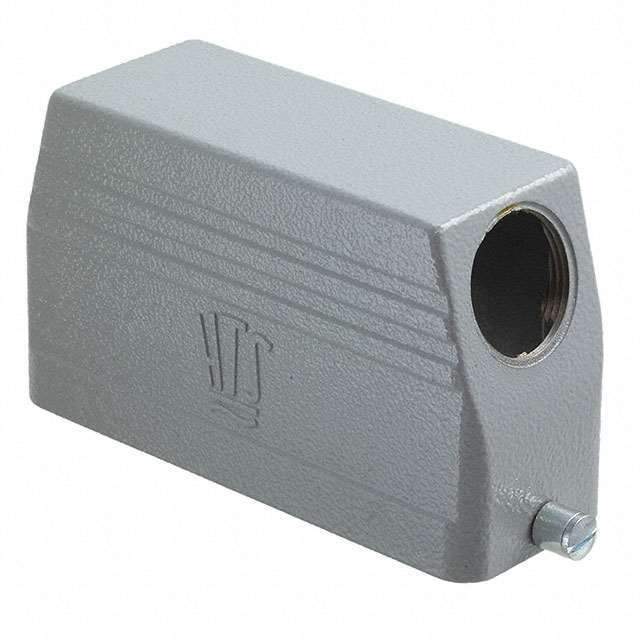

1-1102316-7 Real Image
Same model may have multiple batches, images only for reference.

1-1102316-7

Part No 1-1102316-7
Manufacturer TE Connectivity
Catalog Circular Connectors
Description CONN HOOD SIDE ENTRY SZ8 PG21 / Hood Connector Side Entry PG21 8 IP65 - Dust Tight, Water Resistant
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Heavy Duty Connectors - Housings, Hoods, Bases
Mfr TE Connectivity AMP Connectors
Series HB.24, HTS
Package Bulk
Product Status Obsolete
Connector Type Hood
Style Side Entry
Size 8
Lock Location Locking Clip (1) on Base Bottom
Thread Size PG21
Dimension 4.724" L x 1.693" W x 2.756" H (120.00mm x 43.00mm x 70.00mm)
Housing Color Gray
Ingress Protection IP65 - Dust Tight, Water Resistant
Housing Material Aluminum Alloy, Die Cast
Housing Finish Powder Coated
Base Product Number 1102316
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.8180
Other Names -1-1102316-7-SI,1-1102316-7-ND,A111811,2266-1-1102316-7,AMPS-1-1102316-7,-CE0664-000-SI-ND,-CE0664-000-SI
Standard Package 40
Win Source Part Number 968300-1-1102316-7
Ultra Librarian 3D Model Ultra Librarian 1-1102316-7 CAD Model

Description

The TE Connectivity AMP Connectors HB.24 and HTS series are heavy-duty connector hoods designed for use with connectors.

  • Series: HB.24 and HTS
  • Entry Style: Side Entry
  • Locking Mechanism: Locking Clip on Base Bottom
  • Housing Material: Die-Cast Aluminum Alloy
  • Housing Color: Gray
  • Connector Type: Hood
  • Ingress Protection: IP65
  • Package: Bulk
  • Standard Package: 40
  • Size: 8
  • Thread Size: PG21
  • Dimensions: 4.724" L x 1.693" W x 2.756" H (120.00mm x 43.00mm x 70.00mm)
  • MSL Level: 1 (Unlimited)
  • Product Status: Obsolete
