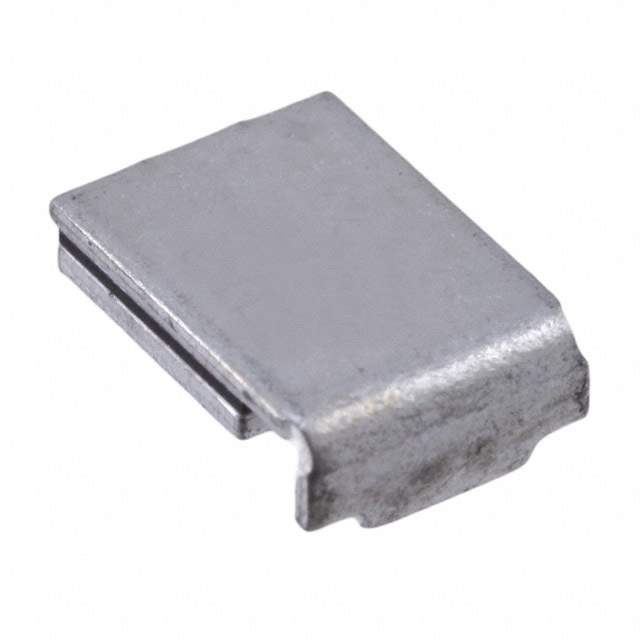

MF-SM200-2-99 Real Image
Same model may have multiple batches, images only for reference.

MF-SM200-2-99

Part No MF-SM200-2-99
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE RESETTABLE
Datasheet
MF-SM200-2-99 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 15V
Current - Max 100A
Current - Hold (Ih) (Max) 2A
Current - Trip (It) 4A
Time to Trip 12s
Resistance - Initial (Ri) (Min) 45 mOhm
Resistance - Post Trip (R1) (Max) 125 mOhm
Temperature Range - Operating -40°C to 85°C
Ratings AEC-Q200
Mounting SMD (SMT)
Dimension 0.344" L x 0.264" W (8.75mm x 6.71mm)
Thickness (Max) 0.118" (3.00mm)
Approvals cURus, TUV
Win Source Part Number 058463-MF-SM200-2-99
Ultra Librarian 3D Model Ultra Librarian MF-SM200-2-99 CAD Model

Description

The Bourns Inc. MF-SM200-2-99 is an active electronic component that belongs to the category of Circuit Protection.

  • Description: designed to protect electronic circuits from overcurrent and overvoltage conditions
  • Approvals: approved by cURus and TUV
  • Voltage Rating: 15V
  • Maximum Current Rating: 100A
  • Thickness: 0.118 inches
  • Temperature Range: -40°C to 85°C
  • Manufacturer: Bourns Inc.
  • Description: For more information about this product, please visit the official website of Bourns Inc.
