Same model may have multiple batches, images only for reference.

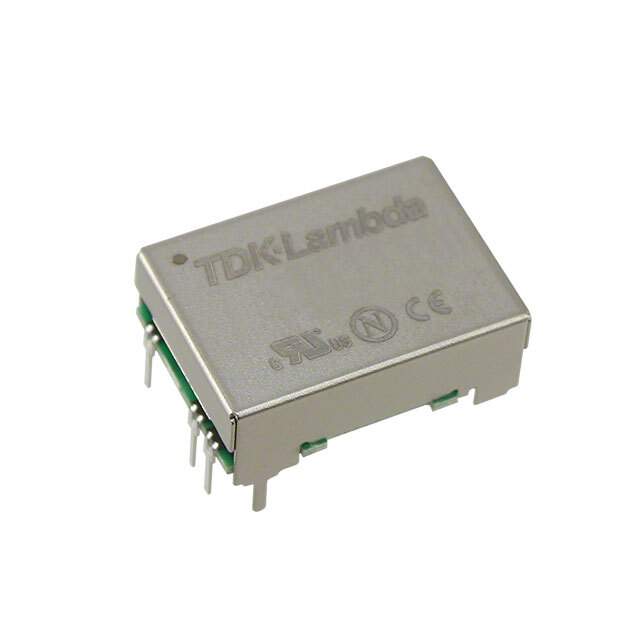

CC3-1205SF-E Real Image
Same model may have multiple batches, images only for reference.

CC3-1205SF-E

Part No CC3-1205SF-E
Manufacturer TDK-Lambda Americas Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 3W / Isolated Module DC DC Converter 1 Output 5V 600mA 9V - 18V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr TDK-Lambda Americas Inc
Series CC-E (3W)
Package Tray
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 5V
Current - Output (Max) 600mA
Power (Watts) 3 W
Voltage - Isolation 500 V
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case 7-DIP Module
Size / Dimension 0.90" L x 0.65" W x 0.34" H (22.9mm x 16.6mm x 8.5mm)
Control Features Enable, Active Low
Base Product Number CC3-1205
Standard Package 10
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1350652-CC3-1205SF-E
Ultra Librarian 3D Model Ultra Librarian CC3-1205SF-E CAD Model

Description

The CC3-1205SF-E is an electronic component that is designed for use in power supplies - board mount - DC DC converters.

  • Power: 3 W
  • Voltage Isolation: 500 V
  • Current Output (Max): 600mA
  • Voltage Input (Min): 9V
  • Operating Temperature: -40°C ~ 85°C
  • Mounting Type: Through Hole
  • Package: Tray
  • Standard Package: 10
