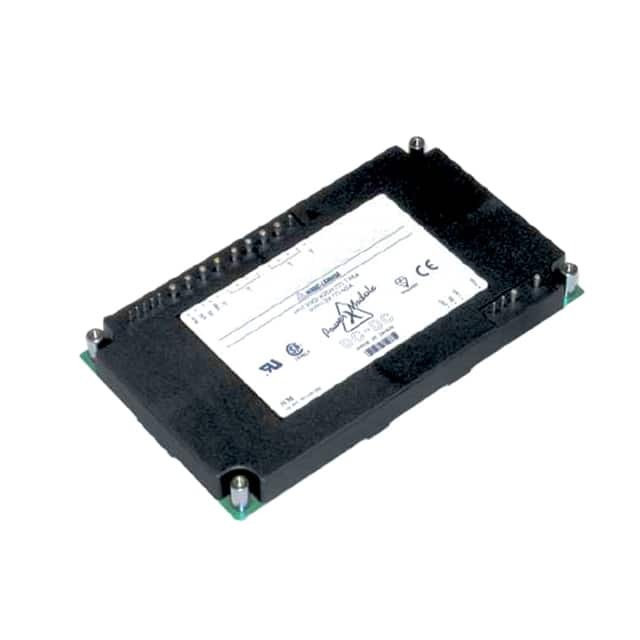

Same model may have multiple batches, images only for reference.

PH150S280-3.3

Name: PH150S280-3.3
Brand: TDK-Lambda Americas Inc.
SKU: 930333
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PH150S280-3.3
Manufacturer	TDK-Lambda Americas Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 3.3V 150W / Isolated Module DC DC Converter 1 Output 3.3V 30A 200V - 400V Input
Datasheet	PH150S280-3.3 Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	TDK-Lambda Americas Inc.
Series	PH-S (150W)
Package	Bulk
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	200V
Voltage - Input (Max)	400V
Voltage - Output 1	3.3V
Current - Output (Max)	30A
Power (Watts)	150 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP
Temperature Range - Operating	-20°C ~ 85°C
Mounting Type	Through Hole
Package / Case	Module
Size / Dimension	3.85" L x 1.61" W x 0.50" H (86.0mm x 41.0mm x 12.7mm)
Control Features	Enable, Active Low
Standard Package	1 pcs
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	930333-PH150S280-3.3
Ultra Librarian 3D Model	Ultra Librarian PH150S280-3.3 CAD Model

Alternative Products

Description

The 930333-PH150S280-3.3 is a high-power isolated module power supply designed for board mount applications in the field of power electronics.

Series: PH-S series
Power Output: 150W
Size: 3.85" L x 1.61" W x 0.50" H (86.0mm x 41.0mm x 12.7mm)
Features: Remote On/Off, overcurrent protection (OCP), overtemperature protection (OTP), and overvoltage protection (OVP)
Input Voltage Range: 200V to 400V
Output Voltage: Single output voltage of 3.3V
Maximum Output Current: 30A
Manufacturer: TDK-Lambda Americas Inc.
Package: Packaged in bulk
Product Status: Part of the company's obsolete product range
Voltage Isolation: 3kV
Mounting: Through-hole mountable
Temperature Range: -20°C to 85°C
HTSUS code: 8504.40.9580
