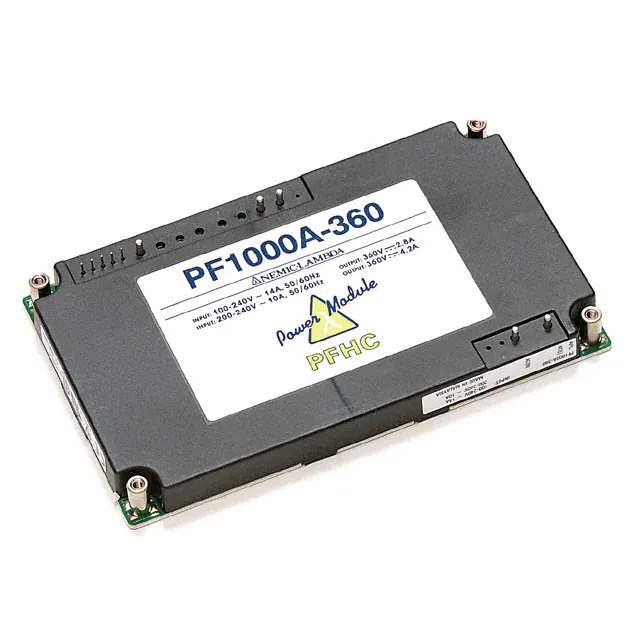

PF1000A-360 Real Image
Same model may have multiple batches, images only for reference.

PF1000A-360

Part No PF1000A-360
Manufacturer TDK-Lambda Americas Inc.
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 360V 1000W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - AC DC Converters
Mfr TDK-Lambda Americas Inc.
Series PF (1000W)
Package Tray
Product Status Active
Type Enclosed
Number of Outputs 1
Voltage - Input 85 ~ 265 VAC
Voltage - Output 1 360V
Current - Output (Max) 2.8A
Power (Watts) 1000 W
Applications ITE (Commercial)
Features Universal Input
Temperature Range - Operating -40°C ~ 100°C (With Derating)
Efficiency 95%
Mounting Type Through Hole
Package / Case 10-DIP Module
Size / Dimension 4.60" L x 2.40" W x 0.50" H (116.8mm x 61.0mm x 12.7mm)
Approval Agency CE, cULus
Standard Number 60950-1; 62368-1
Line Regulation 5V
Load Regulation 10V
Weight 0.662 lb (300.28 g)
Base Product Number PF1000A
Standard Package 1 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9540
California Prop 65 Warning Information
Win Source Part Number 654414-PF1000A-360
Ultra Librarian 3D Model Ultra Librarian PF1000A-360 CAD Model

Description

The PF1000A-360 is an enclosed AC-DC converter from the PF series, designed for board mount applications. It offers a power output of 1000W and a universal input voltage range of 85V to 265VAC.

  • Power Output: 1000W
  • Input Voltage: 85V to 265VAC
  • Size: 4.60" L x 2.40" W x 0.50" H
  • Applications: ITE (Commercial)
  • Output Voltage: 360V
  • Output Current: 2.8A (maximum)
  • Efficiency: 95%
  • Mounting: Through hole
  • Temperature Range: -40°C to 100°C (with derating)
  • Standards: CE and cULus
  • Warning: California Prop 65
